Product Overview

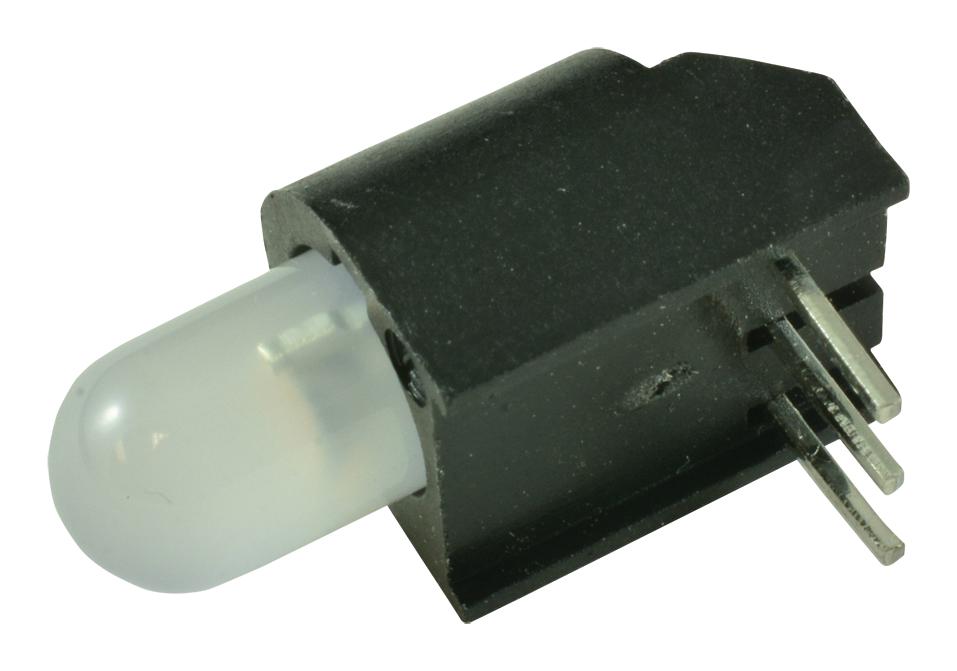

550-3509F is a 550-3x09 series 3 leaded, bi-colour, common cathode, LED CBI® circuit board indicator.
- Multiple CBIs form horizontal LED arrays on 7.62mm (0.300”) centre-lines
- High contrast, UL 94 V-0 rated, black housing
- Oxygen index: 32%
- Polymer content: PBT, 0.414g
- Housing stand-offs facilitate PCB cleaning
- Solderability per MIL-STD-202F, method 208F
- LEDs are safe for direct viewing per IEC 825-1, EN-60825-1
- Red/green colour
- 635/565nm peak wavelength
- 10mA test current
Product details
| LED Colour |
Green, Red |
| LED Mounting |
Through Hole |
| Forward Current / Colour |
R 25mA, G 25mA |
| Forward Voltage / Colour |
R 2.1V, G 2.3V |
| Height |
7.62mm |
| Product Range |
550 Series |
| No. of LEDs |
1LEDs |
| Bulb Size |
T-1 3/4 (5mm) |
| Luminous Intensity / Colour |
R 5mcd, G 8mcd |
| Viewing Angle |
65° |
| Width |
7.62mm |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
DIALIGHT |
| Part Number |
550-3509F |
| Quantity |
Each |
| Manufacturer Catalogue (3.45MB) EN |
View or download |
