Description
Product Overview

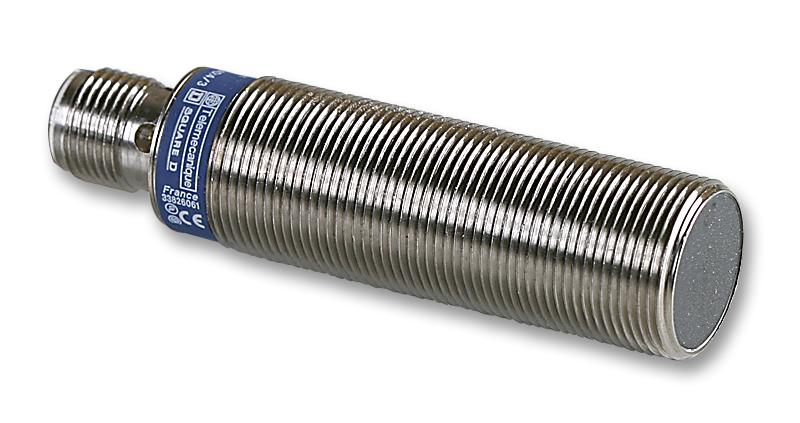

The XS618B1PAM12 from Telemecanique is an OsiSense XS inductive proximity sensor for general purpose applications. It is a cylindrical, flush mountable, 3wire DC solid state output inductive proximity sensor for non contact sensing of metal objects up to 8mm distance.
- Standard cylindrical M18 long case model
- Discrete output function is 1NO
- Discrete output type is PNP
- Male connector M12 with 4 pins
- Rated supply voltage range from 12VDC to 48VDC with reverse polarity protection
- Switching capacity is 200mA DC with overload and short circuit protection
- IP degree of protection of IP69K conforming DIN40050, IP68 double insulation conforming to IEC60529
- Compliant to UL, CSA standard
- 74mm size
Applications
Sensing & Instrumentation, Industrial, Consumer Electronics, Portable Devices, Robotics
Product details
| Sensing Range Max | 8mm |
| Operating Temperature Max | 70°C |
| Thread Size - Metric | M18 |
| Sensing Distance Max | - |
| Supply Voltage DC Min | 12V |
| Supply Voltage DC Max | 48V |
| Sensor Output Type | PNP |
| Sensor Terminals | 4 Pin M12 Connector |
| IP Rating | IP67, IP69K |
| SVHC | Lead (21-Jan-2025) |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Distance Min | - |
| Sensing Distance Nom | 8mm |
| Supply Voltage Min | 12VDC |
| Supply Voltage Max | 48VDC |
| Sensor Case / Package | Cylindrical M18 Thread |
| Sensor Body Material | Brass |
| Operating Temperature Min | -25°C |
Other details
| Brand | TELEMECANIQUE SENSORS |
| Part Number | XS618B1PAM12 |
| Quantity | Each |
| Manufacturer Catalogue (18.95MB) EN | View or download |
| Miscellaneous (1.76MB) EN | View or download |
| Certificate of Conformity (152.99KB) EN | View or download |
