Description
Product Overview

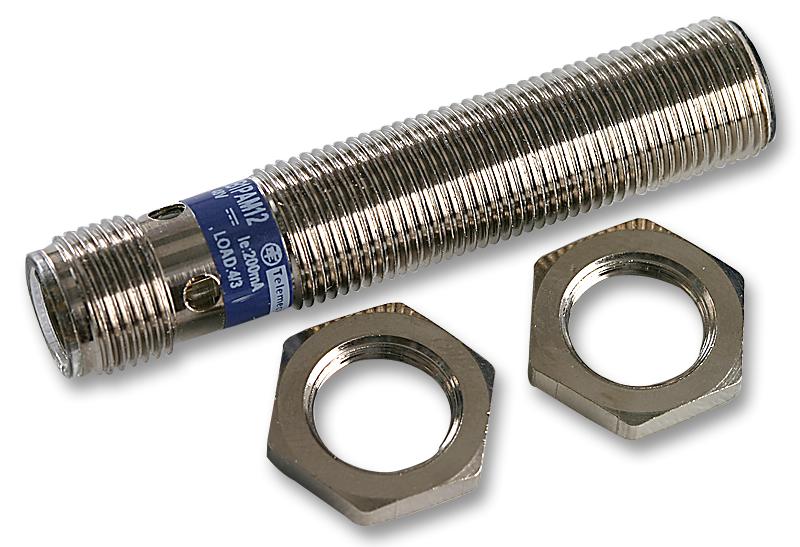

The XS612B1PAM12 from Telemecanique is an OsiSense XS inductive proximity sensor for general purpose applications. It is a cylindrical, flush mountable, 3wire DC solid state output inductive proximity sensor for non contact sensing of metal objects of 4mm sensing distance.
- Standard cylindrical M12 long case model
- Discrete output function is 1NO
- Discrete output type is PNP
- Male connector M12 with 4 pins
- Rated supply voltage range from 12VDC to 48VDC with reverse polarity protection
- Switching capacity is 200mA DC with overload and short circuit protection
- IP degree of protection of IP69 K conforming to DIN 40050 and IP67 conforming to IEC 60529
- Compliant to UL, CSA standard
- 63mm size
Applications
Sensing & Instrumentation, Industrial, Consumer Electronics, Portable Devices, Robotics
Product details
| Sensor Type | Inductive Proximity Sensor |
| Operating Temperature Max | 70°C |
| Sensing Distance Min | - |
| Sensor Output Type | 3-Wire, PNP, NO |
| Supply Voltage DC Min | 12V |
| Supply Voltage DC Max | 48V |
| Sensor Terminals | 4 Pin M12 Connector |
| IP Rating | IP67, IP69K |
| Sensing Range Max | 4mm |
| Thread Size - Metric | M12 |
| Sensing Distance Max | - |
| Sensing Distance Nom | 4mm |
| Supply Voltage Min | 12VDC |
| Supply Voltage Max | 48VDC |
| Sensor Case / Package | Cylindrical M12 Thread |
| Sensor Body Material | Brass |
| Operating Temperature Min | -25°C |
Other details
| Brand | TELEMECANIQUE SENSORS |
| Part Number | XS612B1PAM12 |
| Quantity | Each |
| Certificate of Conformity (152.99KB) EN | View or download |
| Manufacturer Catalogue (18.95MB) EN | View or download |
| Miscellaneous (30.86KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 10045.76 |
| 3-5 | ₹ 9943.26 |
| 5-10 | ₹ 9738.24 |
| 10+ | ₹ 9533.23 |
Bulk discount will be automatically applied during checkout based on quantity.
