Description
Product Overview

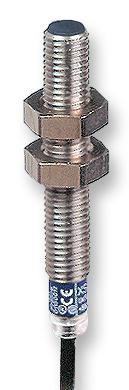

The XS608B1PAL2 from Telemecanique is an OsiSense XS inductive proximity sensor for general purpose applications. It is a cylindrical, flush mountable, 3wire DC solid state output inductive proximity sensor for non contact sensing of metal objects up to 2.5mm distance.
- Standard cylindrical M8 long case model
- Discrete output function is 1NO
- Discrete output type is PNP
- 2m cable connection
- Rated supply voltage range from 12VDC to 48VDC with reverse polarity protection
- Switching capacity is 200mA DC with overload and short circuit protection
- IP degree of protection IP67 conforming to IEC 60529
- Compliant to UL, CSA standard
- 50mm size
Applications
Sensing & Instrumentation, Industrial, Consumer Electronics, Portable Devices, Robotics
Product details
| Sensing Range Max | 2.5mm |
| Operating Temperature Max | 70°C |
| Sensing Distance Min | - |
| Sensing Distance Max | - |
| Sensing Distance Nom | 2.5mm |
| Supply Voltage DC Max | 48V |
| Sensor Output Type | PNP |
| Sensor Terminals | Cable |
| IP Rating | IP67 |
| Product Range | XS Series |
| Sensor Type | Inductive Proximity Sensor |
| Thread Size - Metric | M8 |
| Supply Voltage DC Min | 12V |
| Supply Voltage Min | 12VDC |
| Supply Voltage Max | 48VDC |
| Sensor Case / Package | Cylindrical M8 Thread |
| Sensor Body Material | 303 Stainless Steel |
| Operating Temperature Min | -25°C |
| SVHC | No SVHC (17-Dec-2014) |
Other details
| Brand | TELEMECANIQUE SENSORS |
| Part Number | XS608B1PAL2 |
| Quantity | Each |
| Miscellaneous (30.86KB) EN | View or download |
| Certificate of Conformity (1.06MB) EN | View or download |
| Handling Instructions (69.92KB) EN | View or download |
| Manufacturer Catalogue (18.95MB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
