Product Overview

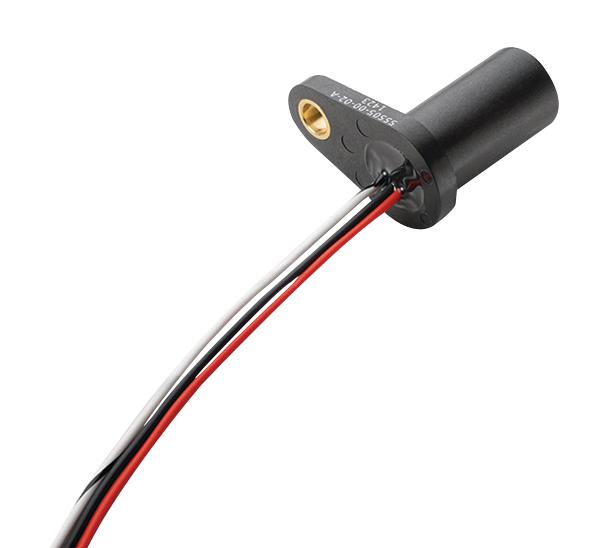

55505-00-02-B is a 55505 series robust flange mount, Geartooth hall effect sensor primarily used for geartooth sensing. Protected against severe and automotive environments. It is capable of switching up to 27VDC and 20mA. Its case design incorporates a brass mounting bush. Ideally suited for wheel, transmission, and camshaft speed sensing, gear tooth sensors, rotary encoders, and industrial, commercial, and automotive applications.
- Ferrous target sensing, protection against severe and automotive environments
- Self-adjusting magnetic range, high-speed operation
- Integral EMC, short-circuit and reverse voltage protection, on-board 10bit A/D converter
- No chopper delay, immune to target run-out, rotational alignment to target not critical
- 300mm cable length, Deutsch DTM04-3P termination
- 3-Wire (voltage output), supply voltage range from 4.75V to 24V
- Output low voltage is 0.6V max at 20mA
- Operating temperature range from -40°C to 125°C
- Current consumption is 1mA minimum
- 15KHz max switching speed
Product details
| Sensor Type |
Proximity Sensor |
| Supply Voltage DC Min |
4.75V |
| Supply Voltage DC Max |
24V |
| Output Configuration |
Digital |
| Operating Temperature Min |
-40°C |
| Product Range |
55505 Series |
| Activating Distance Min |
- |
| Activating Distance Max |
- |
| Sensor Mounting |
Flange |
| Sensor Terminals |
Cable with Connector |
| Operating Temperature Max |
100°C |
| SVHC |
To Be Advised |
Other details
| Brand |
LITTELFUSE |
| Part Number |
55505-00-02-B |
| Quantity |
Each |
| Technical Data Sheet (477.68KB) EN |
View or download |
