Product Overview
S9KEAZN64ACLH is a Kinetis® EA series of 32-bit Arm® Cortex® MCU targeted for a wide range of automotive and industrial applications requiring the highest level of quality and longevity support. Typical applications include automotive (Diesel engine management, electric pumps, motorcycle engine control unit (ECU) and small engine control), Industrial (3-Phase AC induction motor, brushless DC motor (BLDC) control, motion control and robotics, motor drives permanent magnet synchronous motor (PMSM)).
- Supply voltage range from 2.7V to 5.5V
- Excellent EMC/ESD, high temperature, and low radiated emissions
- Scalable, highly robust performance solution for cost-sensitive automotive applications
- 64K flash, 4K RAM and 256B EEPROM
- 40MHz operating frequency
- Power management module (PMC) with three power modes
- Supports WDOG, CRC, SWD, BITBAND and BME system functions

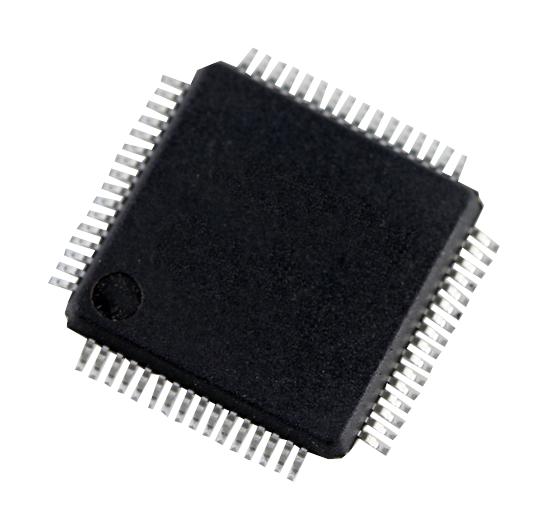

- 0.5mm pitch, 64 pin LQFP package
Product details
| Product Range |
Kinetis EA Family KEAZx Series Microcontrollers |
| Data Bus Width |
32 bit |
| Program Memory Size |
64KB |
| IC Case / Package |
LQFP |
| Interfaces |
I2C, SPI, UART |
| ADC Channels |
16Channels |
| Supply Voltage Min |
2.7V |
| Operating Temperature Min |
-40°C |
| IC Mounting |
Surface Mount |
| MCU Series |
KEAx |
| SVHC |
No SVHC (27-Jun-2024) |
| Device Core |
ARM Cortex-M0+ |
| Operating Frequency Max |
40MHz |
| No. of Pins |
64Pins |
| No. of I/O's |
57I/O's |
| RAM Memory Size |
4KB |
| ADC Resolution |
12Bit |
| Supply Voltage Max |
5.5V |
| Operating Temperature Max |
85°C |
| MCU Family |
Kinetis EA |
| Qualification |
AEC-Q100 |
