Product Overview
DX120R is a DX series 1.5W ultra-miniature DC to HVDC converter. This DX series is a line of high voltage power supply is suitable for applications requiring a compact source of clean, reliable, low-cost high voltage. This unit exhibits low noise and EMI/RFI by utilizing a quasi sinewave oscillator and a fully enclosed ferrite pot core transformer. The output voltage is controlled by an external potentiometer or resistor. The high voltage connection is made through a 30KV silicone wire. Typical applications are capacitor charging, ionization, dielectric testing, air cleaning and electrostatic generators.
- Output voltage range from +1.8KV to +12KV
- 100μA output current, 12V input voltage
- Short circuit protected, resistance programming
- Proportional operation, low noise oscillator design
- Switching frequency range from 30 to 80KHz
- DAP case material, solid vacuum encapsulation, UL94 V-0 rated
- Operating temperature range from -10 to +50°C (case temperature)
- Dimension is 95.3 x 38.1 x 25.4mm
Product details
| High Voltage Power Supply Type |
Proportional |
| DC / DC Converter Output Type |
Adjustable |
| Output Current Max |
100µA |
| Output Voltage Min |
1.8kV |
| Input Voltage DC Min |
- |
| Product Range |
DX Series |
| Polarity |
Positive Output |
| Power Rating |
1.5W |
| Power Supply Mounting |
- |
| Output Voltage Max |
12kV |
| Input Voltage DC Max |
12V |
Other details
| Brand |
XP POWER |
| Part Number |
DX120R |
| Quantity |
Each |
| Technical Data Sheet (1.92MB) EN |
View or download |

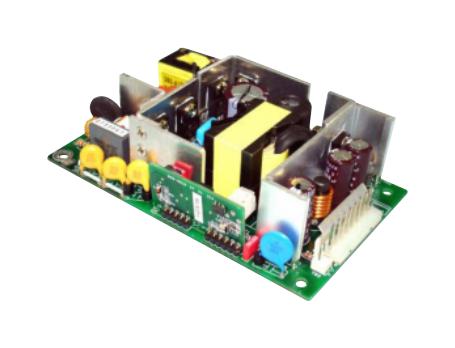

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
