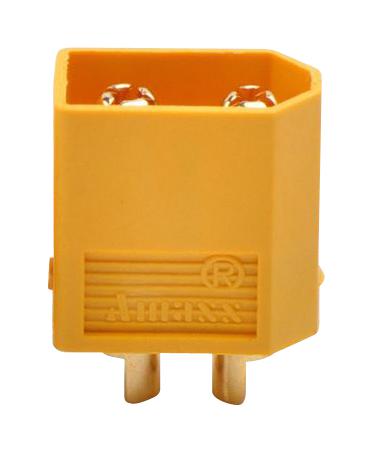

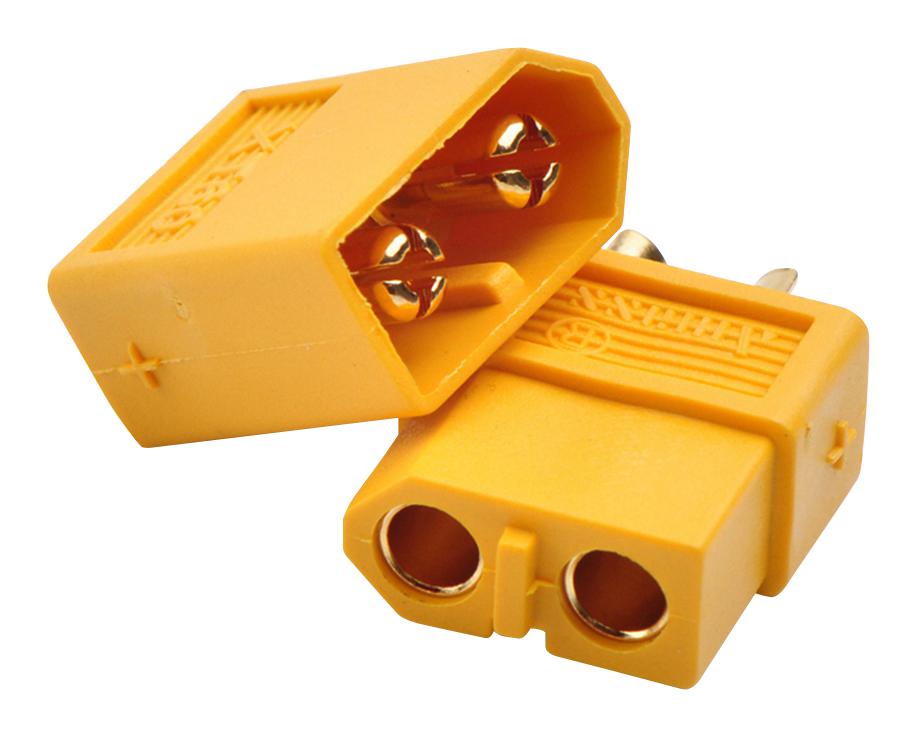

MULTICOMP PRO MP011770 Rectangular Power Connector, 2 Contacts, XT60, Cable Mount, Solder Cup, 7.2 mm, Plug

The MP011770 from Multicomp Pro is a high current male power connector designed for demanding controller applications requiring secure and repeatable power connections. Fitted with gold plated brass contacts, the connector delivers excellent electrical conductivity, low contact resistance, and long term resistance to corrosion, ensuring reliable performance across repeated mating cycles. Rated for 30A continuous current and capable of handling instantaneous currents up to 60A, the MP011770 is well suited to high power control and distribution systems. It supports 12AWG wire, enabling efficient current handling with minimal losses. The connector is housed in robust PA insulation and operates reliably across a wide -20°C to +120°C temperature range. With a 500V DC withstanding voltage and a durability rating of up to 1000 mating cycles, the MP011770 is ideal for professional electronic systems where high current capability, reliability, and long service life are essential.

• 30A rated current for high power controller applications
• Handles up to 60A instantaneous current for inrush and surge conditions
• Gold plated brass contacts for very low contact resistance (0.55mΩ) and long term durability
• Supports 12AWG wire for efficient high current power delivery
• 500V DC withstanding voltage for enhanced electrical safety
• Wide operating temperature range: -20°C to +120 °C
• Durable PA insulation housing for mechanical and thermal stability
• Rated for 1000 mating cycles, suitable for repeated use applications
• Yellow housing for easy visual identification
• Optimised for controller power connection applications
