Product Overview

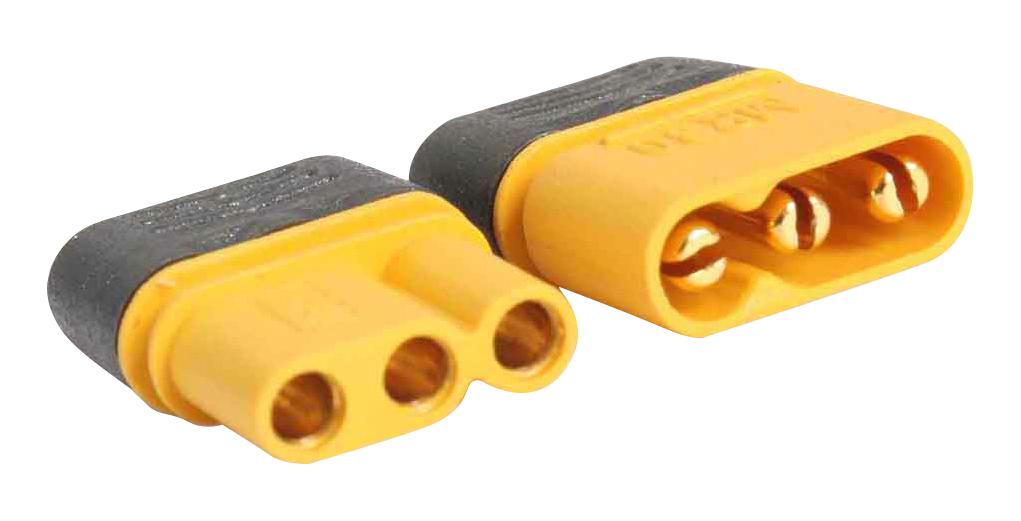

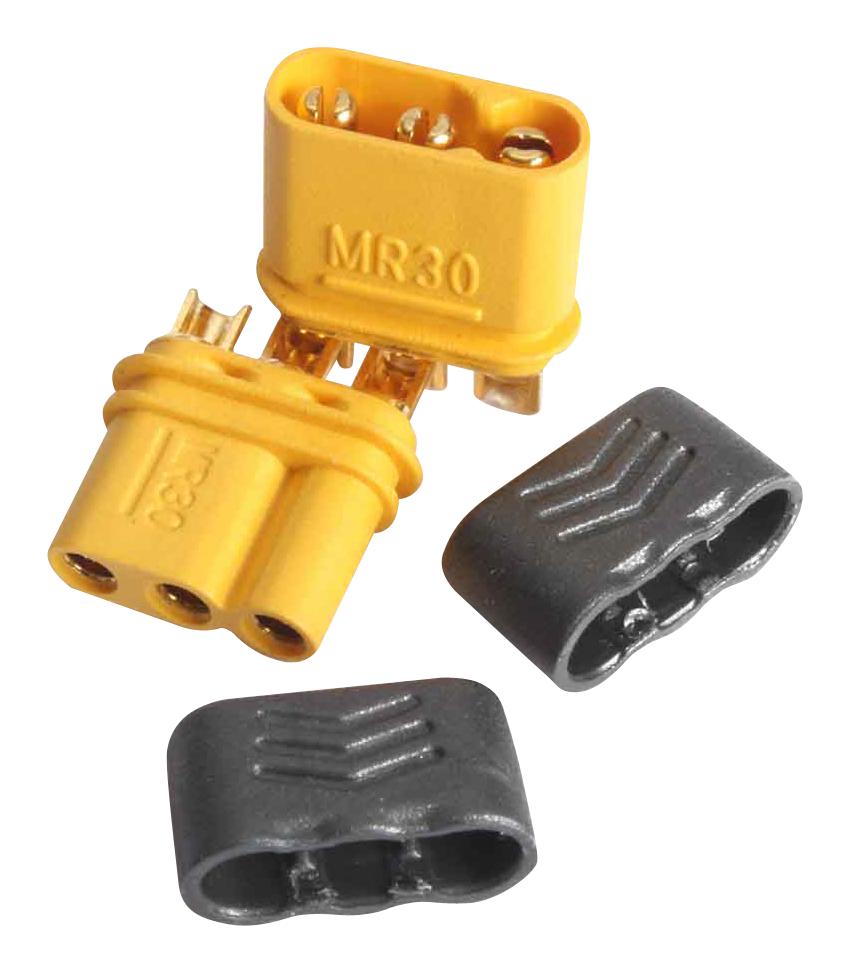

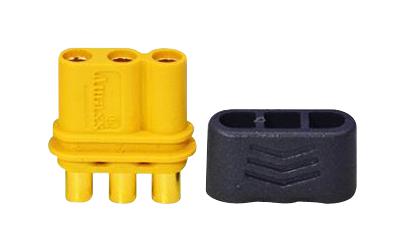

The MP011763 Female Power Connector from Multicomp Pro is a high reliability gold plated connector designed for demanding power connection applications. Engineered to deliver low contact resistance and high current handling, it supports continuous currents up to 15A with an instantaneous capability of 30A. Constructed with a gold plated brass contact and PA insulation, this connector provides excellent electrical performance, durability, and thermal stability across a wide operating temperature range from -20°C to +120°C. Suitable for use with 16AWG wire, it is ideal for controller and power distribution applications where reliable and repeatable connections are essential. Rated for up to 1000 mating cycles, the MP011763 ensures dependable long term performance in professional and industrial environments.
- Rated at 15A continuous current, with 30A instantaneous handling
- Low Contact Resistance: 0.7mΩ
- Gold Plated Brass Contact for enhancing conductivity and corrosion resistance
- Operating Temperature Range: -20°C to +120°C
- 16AWG Wire for robust power wiring applications
- PA housing for strength and thermal stability
- Withstands up to DC 500V
- Designed for up to 1000 mating cycles
- Ideal for controller and power connection uses
- Yellow/Black for easy identification
Product details
| No. of Contacts |
3Contacts |
| Connector Mounting |
Cable Mount |
| Pitch Spacing |
3.5mm |
| Contact Gender |
Socket |
| Contact Plating |
Gold Plated Contacts |
| No. of Rows |
1Rows |
| Product Range |
MP MR Series |
| Contact Termination Type |
Solder Cup |
| Gender |
Receptacle |
| Contact Material |
Brass |
| Connector Shell Size |
- |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MP011763 |
| Quantity |
Each |
| Technical Data Sheet (216.97KB) EN |
View or download |
