Description
Product Overview

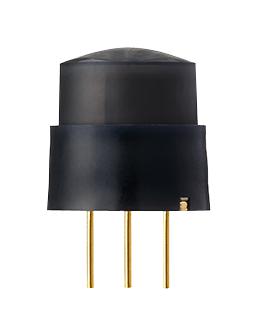

EKMB1307112K EKMB (WL) series Panasonic PIR motion sensor (3rd generation PaPIR) is suitable for low current consumption for battery-driven applications. Reduces current consumption with featured special circuit design technology allowing longer battery life. This sensor features lower height lens design, comparable performance to PaPIRs standard detection type lens. Typical application includes base lighting controls, digital storage and IP cameras.
- Fit with superior product design
- Optimal usability and reliability
- Usable ambient temperature range from -20 to +60°C (do not use in freezing/condensation environment)
- Low profile lens type
- Black lens colour
- Standard sensitivity
- Digital (open collector) output type
- Economy, 6µA standby current consumption
- Specified detection distance up to 5m
- 3m typical ceiling installation height, 110° x 110° field of view, 32 detection zones
Notes
Do not solder with a soldering iron above 350°C (662°F), or for more than 3 seconds. This sensor should be hand soldered.
Product details
| Sensing Range Max | 7m |
| Detection Sensitivity | Standard |
| Detection Area (Vertical) | 90° |
| Detection Area (Horizontal) | 90° |
| Response Time | 10s |
| Lens Colour | Black |
| Current Consumption Typ | 6µA |
| Qualification | - |
| Detection Distance | 7m |
| Supply Voltage Min | 2.3VDC |
| Supply Voltage Max | 4VDC |
| Beam Angle | 90° |
| Lens Type | Low Profile |
| No. of Detection Zones | 32Zones |
| Product Range | EKMB WL Series |
| SVHC | No SVHC (25-Jun-2025) |
Other details
| Brand | PANASONIC |
| Part Number | EKMB1307112K |
| Quantity | Each |
| Product Change Notice (558.34KB) EN | View or download |
| Technical Data Sheet (613.43KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
