Product Overview

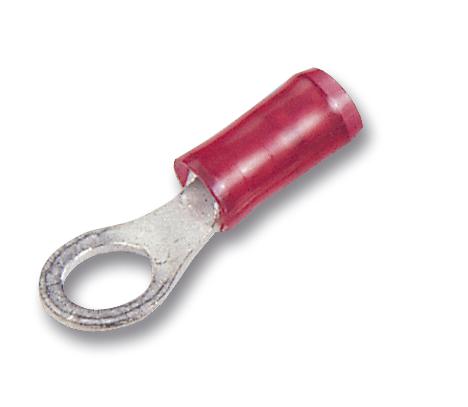

The 0-0031890-0 is a straight ring tongue pre-insulated Crimp Terminal. The terminals accept a combination of solid and stranded wire. The wire barrel contains serrations that provide maximum contact and tensile strength after crimping the terminal onto the wire.
- Closed Barrel Type
- 300V Maximum Voltage
- Copper, Tin Plating Material
- 105°C Operating Temperature
Product details
| Stud Size - Metric |
M4 |
| Wire Size AWG Max |
16AWG |
| Product Range |
PIDG |
| Insulator Material |
Nylon (Polyamide) |
| Stud Size - Imperial |
#8 |
| Conductor Area CSA |
1.42mm² |
| Insulator Colour |
Red |
| SVHC |
No SVHC (04-Feb-2026) |
