Description
Product Overview

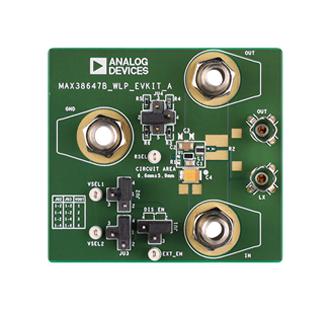

MAX38647B WLP evaluation kit (EV kit) evaluates the MAX38647B IC in a wafer-level package (WLP). The MAX38647B is a tiny, 1.8V to 5.5V Input, 440nA IQ, 175mA nanoPower buck converter with four-level VSEL. The MAX38647B can change voltage dynamically using two voltage-select (VSEL) pins. The EV kit delivers up to 175mA of output current. The EV kit comes with the MAX38647BANA+ installed.
- Evaluates the MAX38647B IC in an (1.82mm x 0.89mm, 0.4mm pitch) 8-bump WLP package
- 1.8V to 5.5V input voltage range
- 0.5V to 1.8V configurable output voltage
- Up to 175mA output current
- Proven two-layer 1oz copper PCB layout
- Demonstrates compact solution size
- Fully assembled and tested
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
| Silicon Manufacturer | Analog Devices |
| Kit Application Type | Power Management - Voltage Regulator |
| Kit Contents | Evaluation Board MAX38647BANA+ |
| Automotive Qualification Standard | - |
| Silicon Core Number | MAX38647BANA+ |
| Application Sub Type | Buck DC-DC Converter |
| Product Range | - |
Other details
| Brand | ANALOG DEVICES |
| Part Number | MAX38647BEVK#WLP |
| Quantity | Each |
| Technical Data Sheet (537.31KB) EN | View or download |
