Product Overview

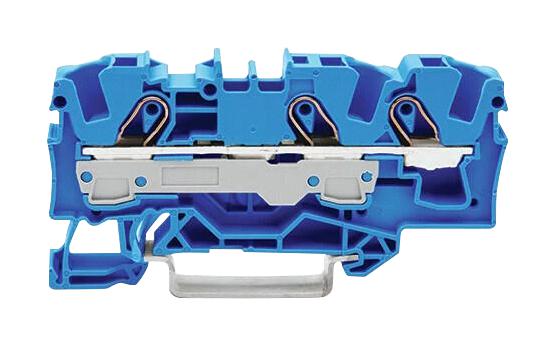

- 35mm DIN rail mounted terminal block with Push-In CAGE CLAMP® technology
- Push-in wire termination for faster installation
- Fits cable of size 0.5mm² - 10mm² / 20 AWG - 8 AWG
- Nominal cross-section: 6mm²
- Nominal voltage: 800V
- Rated Current: 41A
- Front entry wiring
- Screwless connection
Product details
| No. of Positions |
3Ways |
| Wire Size AWG Max |
8AWG |
| Wire Connection Method |
Clamp |
| Rated Voltage |
800V |
| Product Range |
WAGO TOPJOB S - 2006 Series - 3 Conduct Through 35mm DIN Terminal Blocks - 41A, 8AWG |
| Wire Size AWG Min |
20AWG |
| Conductor Area CSA |
6mm² |
| Rated Current |
41A |
| No. of Levels |
1 |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
WAGO |
| Part Number |
2006-1304 |
| Quantity |
Each |
| Technical Data Sheet (1.34MB) EN |
View or download |
