Description
Product Overview
Demonstration circuit 2665B-A features the LTM4626 μModule® regulator, a high performance, high efficiency step-down regulator. The LTM4626 is a complete DC/DC point-of-load regulator in a thermally enhanced 6.25mm × 6.25mm × 3.87mm BGA package. The LTM4626 has an operating input voltage range of 3.1V to 20V and provides an output current up to 12A. The output voltage is programmable from 0.6V to 5.5V and can be remotely sensed. The stacked inductor design improves thermal dissipation and significantly reduces the packaging area. Output voltage tracking is available through the TRACK/ SS pin for supply rail sequencing. External clock synchronization is available through the SYNC/MODE pin. For high efficiency at low load currents, select discontinuous current mode (DCM) operation using the MODE jumper (JP7) in less noise sensitive applications.
- Default operating frequency of 600KHz
- Efficiency of 85%
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
| Silicon Manufacturer | Analog Devices |
| Kit Application Type | Power Management |
| Kit Contents | Demo Board LTM4626EY#PBF |
| Automotive Qualification Standard | - |
| Silicon Core Number | LTM4626EY#PBF |
| Application Sub Type | Step Down µModule Regulator |
| Product Range | - |
| SVHC | No SVHC (07-Jul-2017) |
Other details
| Brand | ANALOG DEVICES |
| Part Number | DC2665B-A |
| Quantity | Each |
| Technical Data Sheet (1.47MB) EN | View or download |

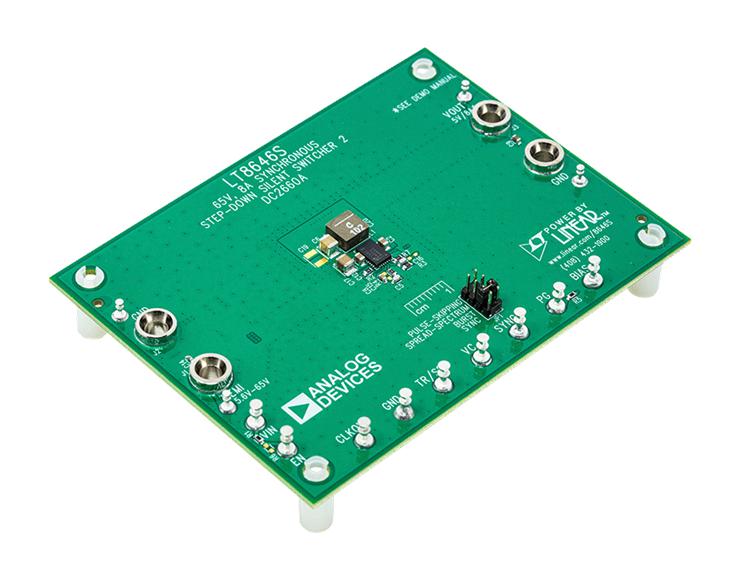

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
