Product Overview

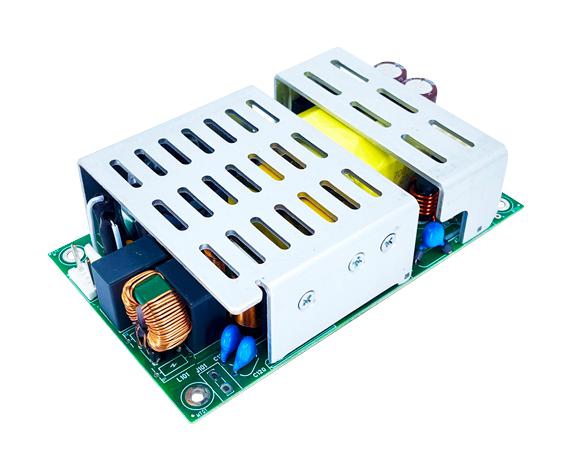

SLB300S48K is a SLB300 series single output medical and industrial grade approved AC-DC power supply. It includes overvoltage protection, short circuit protection, thermal protection, and overload protection. EN/CSA/IEC/UL62368-1, EN/CSA/IEC/UL60601-1-1, 3rd Ed approved. Application includes medical, and industrial.
- Universal input, fits 1U applications
- Class B conducted and radiated EMI
- 80 to 264VAC input voltage range, 48V output voltage
- 6.3A/4.0A/4.0A output current (air/convection/conduction)
- 300W/190W/190W output power (air/convection/conduction), 92% typical efficiency
- 3 years warranty
- Operating temperature range from -10°C to +70°C (start up at -40°C, full load)
- Dimension (W x L x H) is 76.2 x 127 x 35.56mm
Product details
| Power Supply Applications |
ITE, Industrial & Medical |
| Power Rating (Forced Cooling) |
300W |
| Input Voltage VAC |
80V AC to 264V AC |
| Output Voltage - Output 1 |
48V |
| Output Voltage - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Output Voltage - Output 4 |
- |
| Product Range |
SLB300 Series |
| No. of Outputs |
1 Output |
| Power Rating (Convection Cooling) |
190W |
| Power Supply Output Type |
Fixed |
| Output Current - Output 1 |
4A |
| Output Current - Output 2 |
- |
| Output Current - Output 3 |
- |
| Output Current - Output 4 |
- |
Other details
| Brand |
SL POWER / ADVANCED ENERGY |
| Part Number |
SLB300S48K |
| Quantity |
Each |
| Technical Data Sheet (836.46KB) EN |
View or download |
