Product Overview

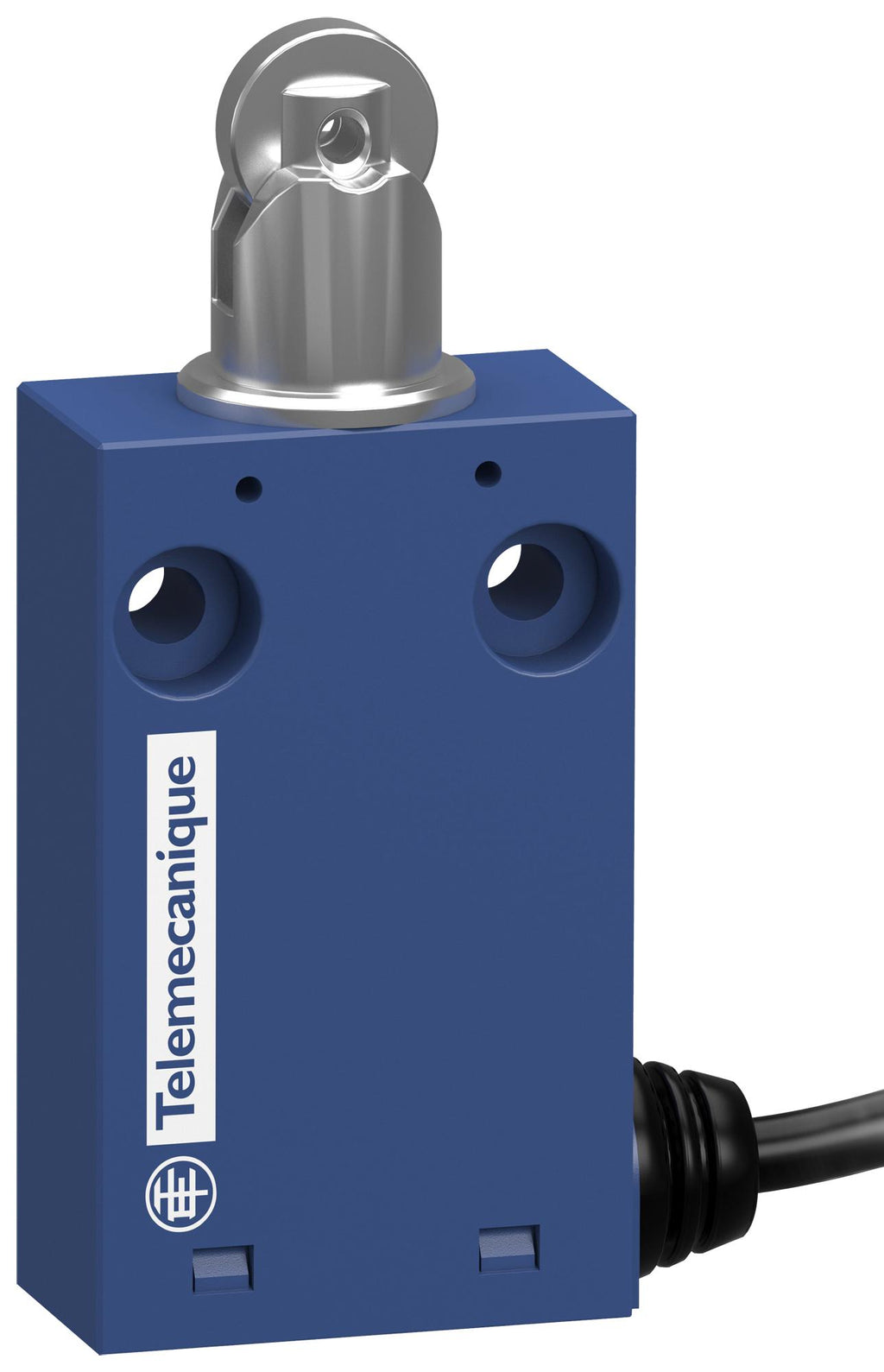

XCMH2102L1 is a XCMH series SPST-NC, SPST-NO miniature design limit switch.
- Steel roller plunger for lateral cam approach
- Lateral cable output
- IP66, IP67 conforming to IEC 60529 and IK 04 conforming to IEC 50102 degree of protection
- Ambient air temperature (for operation) range from -25 to 70°C
- Plastic bodies with Zamak head
- Class II conforming to IEC 61140 and NF C 20-030 electric shock protection
Product details
| Limit Switch Actuator |
Roller Plunger |
| Contact Current AC Max |
750mA |
| Operating Force Max |
7N |
| Contact Current DC Max |
100mA |
| SVHC |
To Be Advised |
| Contact Configuration |
SPST-NC, SPST-NO |
| Contact Voltage AC Max |
240V |
| Product Range |
XCMH Series |
| Contact Voltage DC Max |
250V |
Other details
| Brand |
TELEMECANIQUE SENSORS |
| Part Number |
XCMH2102L1 |
| Quantity |
Each |
| Technical Data Sheet (151.14KB) EN |
View or download |
| Manufacturer Catalogue (62.06MB) EN |
View or download |
