Product Overview

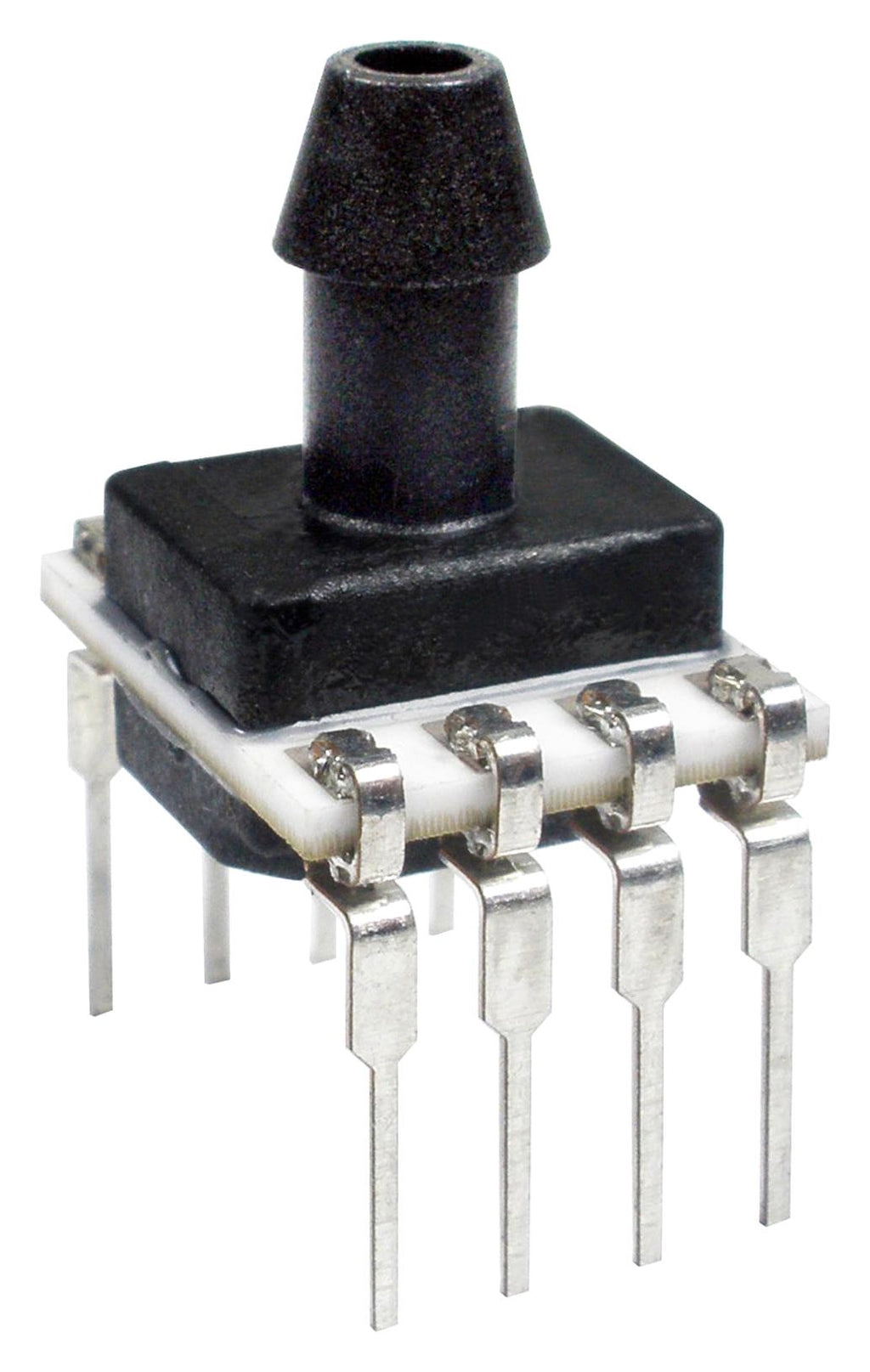

HONEYWELL TSCDANN100PGUCV Pressure Sensor, DIP, Gauge, 0 psi, 100 psi, 1.5 VDC, 12 VDC, DIP
Product details
| Pressure Type |
Gauge |
| Sensor Output Type |
Analogue |
| Operating Pressure Max |
100psi |
| Voltage Rating |
5VDC |
| Supply Voltage Max |
12VDC |
| Sensor Case / Package |
DIP |
| Pressure Port Type |
Single Axial Barbed |
| Output Interface |
- |
| Operating Temperature Min |
-40°C |
| Product Range |
TruStability TSC Series |
| SVHC |
No SVHC (07-Jul-2017) |
| Operating Pressure Min |
0psi |
| Pressure Measurement Type |
Gauge |
| Supply Voltage Min |
1.5VDC |
| Port Style |
Single Axial Barbed |
| Supply Current |
600µA |
| No. of Pins |
8Pins |
| Accuracy |
± 0.15% |
| Sensor Mounting |
Through Hole |
| Media Type |
Non-Corrosive, Non-Ionic Gas/Liquid |
| Operating Temperature Max |
85°C |
| Qualification |
- |
Other details
| Brand |
HONEYWELL |
| Part Number |
TSCDANN100PGUCV |
| Quantity |
Each |
| Technical Data Sheet (3.83MB) EN |
View or download |
