Product Overview

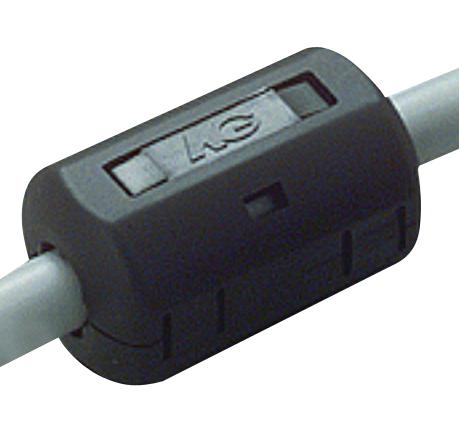

The 0443164151 is a round Ferrite Core Assembly for 12.7mm cable. The common-mode conducted EMI from 25 to 300MHz frequency range. The polypropylene cases are meeting the RoHS restrictions of hazardous substances and have a flammability rating of UL94V-0. Round cable snap-it assembly is controlled for impedances only. Minimum impedance values are specified for the + marked frequencies. The minimum impedance is typically the listed impedance less 20%.
- Many of the snap-it parts have flat core equivalents
- Single turn impedance tests for the 43 material performed on the 4193A vector impedance analyser
Product details
| Cable Diameter |
12.7mm |
| Frequency Max |
300MHz |
| Product Range |
- |
| Frequency Min |
25MHz |
| Impedance |
250ohm |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
FAIR-RITE |
| Part Number |
0443164151 |
| Quantity |
Each |
| Technical Data Sheet (455.83KB) EN |
View or download |
