Product Overview

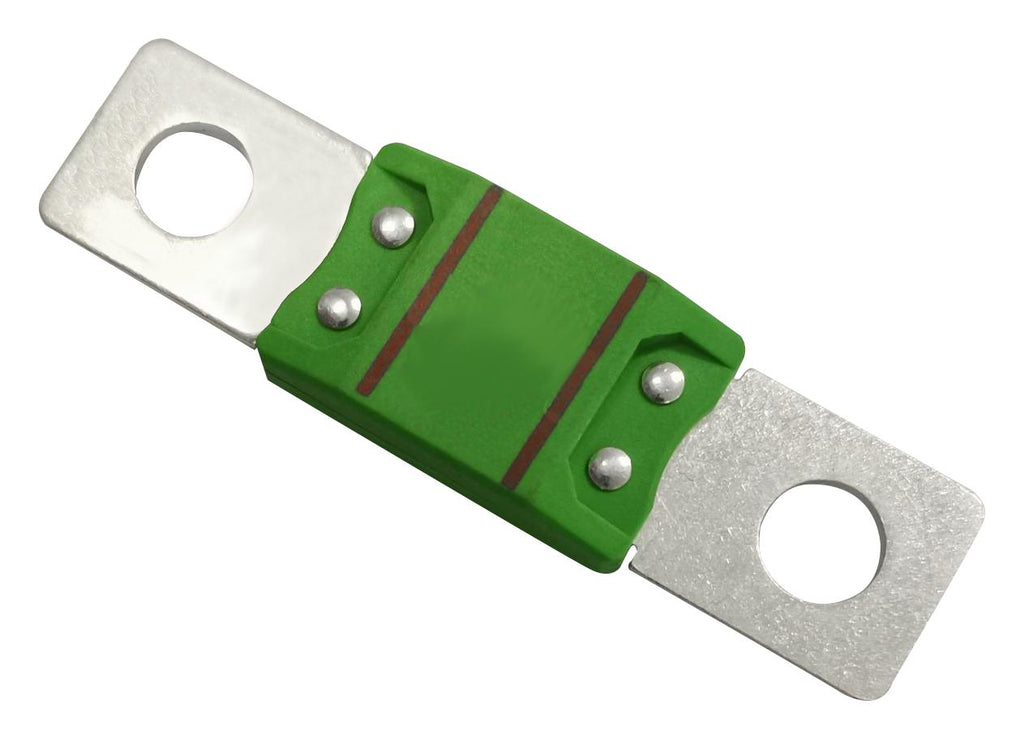

MP011373 is an EV automotive fuse specially engineered and tested to provide best-in-class protection performance in protecting high power battery charging and managing systems of electrical vehicles and hybrid electrical vehicles. Suitable for charging protection and BMS protection applications.
- 70V DC rated voltage and 110mV max voltage drop
- 100A rated current
- Rated breaking capacity is 2.5kA at 70V DC
- Bolt size is M8
- 12Nm torque
- UL approved
- Operational temperature range from -40°C to 125°C
Product details
| Blow Characteristic |
Fast Acting |
| Voltage Rating VDC |
70V |
| Product Range |
MP Auto Bolt AEY M8 Series |
| Fuse Current |
100A |
| Auto Blade Fuse Size |
68.5mm x 16.5mm x 10mm |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MP011373 |
| Quantity |
Each |
| Technical Data Sheet (279.76KB) EN |
View or download |
