Product Overview
RH850/F1KM-S1 is a high-end automotive microcontroller. It is designed for automotive electrical body applications. While it achieves low power consumption. Also, a CAN FD interface has been added and the CPU operating frequency operates up to 120MHz.
- 1 + 0 number of core (main + checker), 120MHz maximum operating frequency
- 128KB RAM, 1024KB program memory, 64KB data flash
- 3.3, 5V I / O supply
- 3chn x CAN, 2 x SPI, 4 x LIN, 2 x I²C, 2ch x SENT, stand by mode
- 21 ADC, 16bit x 16ch, 32bit x 16ch timer
- 64 pin QFP package, operating temperature range from -40°C to +105°C
Product details
| Product Range |
RH850 Family RH850/F1xx Series RH850/F1KM-S1 Group Microcontrollers |
| Data Bus Width |
32 bit |
| Program Memory Size |
1MB |
| IC Case / Package |
LQFP |
| Interfaces |
CAN, Ethernet, I2C, LIN, UART |
| ADC Channels |
21Channels |
| Supply Voltage Min |
3V |
| Operating Temperature Min |
-40°C |
| IC Mounting |
Surface Mount |
| MCU Series |
RH850/F1xx |
| MSL |
MSL 3 - 168 hours |
| Device Core |
G3KH |
| Operating Frequency Max |
120MHz |
| No. of Pins |
64Pins |
| No. of I/O's |
49I/O's |
| RAM Memory Size |
128KB |
| ADC Resolution |
10Bit, 12Bit |
| Supply Voltage Max |
5.5V |
| Operating Temperature Max |
105°C |
| MCU Family |
RH850 |
| Qualification |
- |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
RENESAS |
| Part Number |
R7F7016903AFP-C#AA1 |
| Quantity |
Each |
| Technical Data Sheet (34.88MB) EN |
View or download |
| Product Change Notice (470.22KB) EN |
View or download |

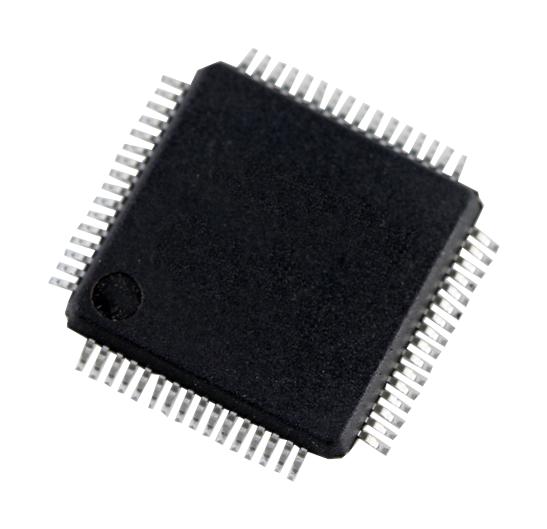

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
