Product Overview
RX66T series is a 32bit microcontroller designed for motor control in industrial, home appliance, and robotics applications. The max. 160MHz RXv3 CPU core enables up to four inverters to be controlled simultaneously, with advanced security and safety functions for inverter control applications.
- RXv3 core 160MHz operation (5.8 coreMark/MHz), single-precision FPU
- Supply voltage range from 2.7V to 5.5V
- 512KB program memory, 64KB RAM, 32KB dataflash, 61 I/O ports
- 8bit x 8-ch, 16bit x 13-ch, 32-bit x 10-ch timer
- 12bit x 19-ch ADC, 12bit x 2-ch DAC
- 7 x UART, 8- x SPI, 8 x I2C, 1 x CAN, 2 x watchdog timer
- With PGA pseudo-differential input, with TSIP-Lite, without USB
- DMA (Direct Memory Access) controller, LVD
- Operating temperature range from -40 to 85°C

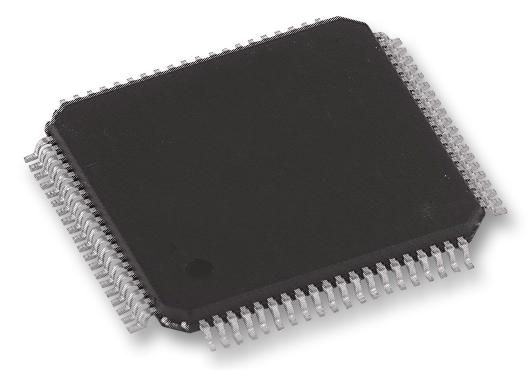

- Available in 80 pin LFQFP package
Product details
| Product Range |
RX Family RX600 Series RX66T Group Microcontrollers |
| Data Bus Width |
32 bit |
| Program Memory Size |
512KB |
| IC Case / Package |
LFQFP |
| Interfaces |
CAN, I2C, SCI, SPI |
| ADC Channels |
19Channels |
| Supply Voltage Min |
2.7V |
| Operating Temperature Min |
-40°C |
| IC Mounting |
Surface Mount |
| MCU Series |
RX600 |
| SVHC |
No SVHC (25-Jun-2025) |
| Device Core |
RX |
| Operating Frequency Max |
160MHz |
| No. of Pins |
80Pins |
| No. of I/O's |
52I/O's |
| RAM Memory Size |
64KB |
| ADC Resolution |
12Bit |
| Supply Voltage Max |
5.5V |
| Operating Temperature Max |
85°C |
| MCU Family |
RX |
| Qualification |
- |
