Product Overview
RX651 series is a mainstream 32bit microcontroller with RXv2 core, large-capacity RAM, and enhanced security, connectivity and human machine interface (HMI) capabilities.
- RXv2 core 120MHz operation (34 coreMark/mA), single-precision FPU
- 1024KB program memory, 256KB RAM, 43 I/O ports
- Supply voltage range from 2.7 to 3.6V
- 8bit x 4-ch, 16bit x 19-ch, 32-bit x 3-ch timer, 12bit x 10-chADC, 12bit x 1-ch DAC
- 9 x UART, 11 x SPI, 11 x I2C
- RTC, LVD, DMA
- 1 x watchdog timer
- AES(128/192/256), TRNG security & encryption
- USB endpoints x 10, USB host, USB isochronous transfer support, USB peripheral, USB ports (ch) x 1

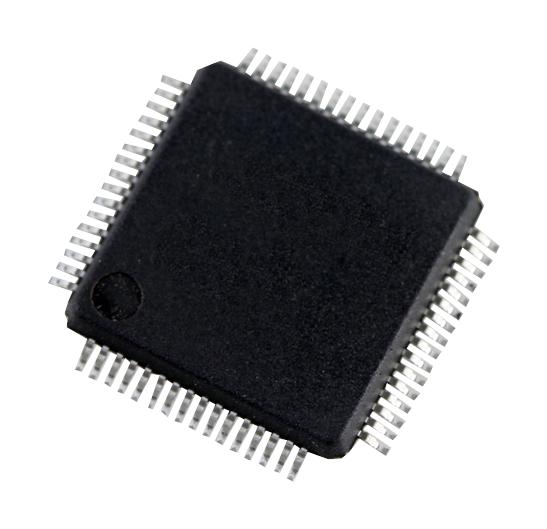

- Available in 64 pin LFQFP package
Product details
| Product Range |
RX Family RX600 Series RX651 Group Microcontrollers |
| Data Bus Width |
32 bit |
| Program Memory Size |
1MB |
| IC Case / Package |
LFQFP |
| Interfaces |
I2C, SCI, SPI, USB |
| ADC Channels |
10Channels |
| Supply Voltage Min |
2.7V |
| Operating Temperature Min |
-40°C |
| IC Mounting |
Surface Mount |
| MCU Series |
RX600 |
| SVHC |
No SVHC (25-Jun-2025) |
| Device Core |
RX |
| Operating Frequency Max |
120MHz |
| No. of Pins |
64Pins |
| No. of I/O's |
42I/O's |
| RAM Memory Size |
256KB |
| ADC Resolution |
12Bit |
| Supply Voltage Max |
3.6V |
| Operating Temperature Max |
85°C |
| MCU Family |
RX |
| Qualification |
- |
