Product Overview

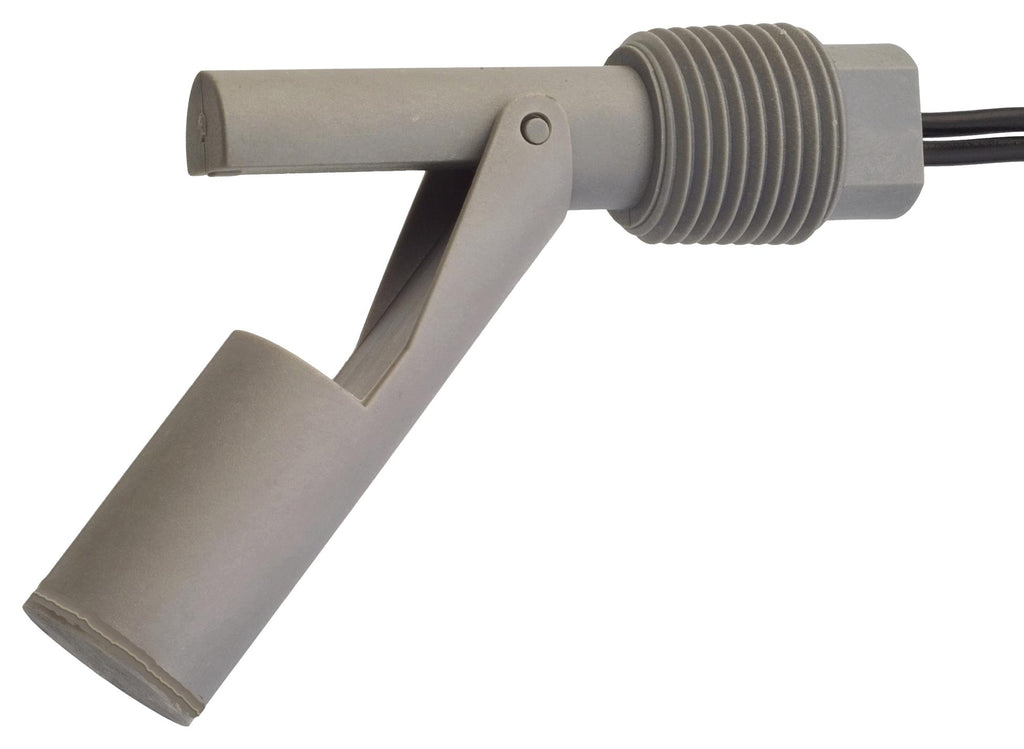

RSF86Y100R is a RSF80 series compact external fitting by 1/2" NPT. It is designed for mounting through the wall of a tank, via 1/2” NPT thread without requiring access to the inside of the tank. It is manufactured in a range of plastics to suit most commonly used liquids. The switch can be fitted to achieve either make-on-rise (N/O) or make-on-fall (N/C) action by simply rotating through 180°. Typical applications include diesel generators, hydraulic oil, and gearbox oil levels.
- 1/2” NPT external mount
- Polyphenylene Sulphide (PPS) material, grey colour
- Temperature range is -10/+120°C
- 0.85SG minimum fluid
- 9mm must close level (SG=1), 24mm must open level (SG=1)
- N/O (N/C) contact form, 25VA maximum switching power
- 240VAC, 120VDC maximum switching voltage, 0.6A maximum switching current
- 100cm PVC 16/0.2 lead outs
- WRAS, UL and NSF approved
Product details
| Level Switch Type |
Float Switch |
| Output Current |
600mA |
| Operating Pressure Max |
- |
| Switch Output |
SPST-NO/NC |
| Supply Voltage Min |
- |
| Operating Temperature Min |
-10°C |
| Product Range |
RSF80 Series |
| Media Type |
Liquid |
| Process Connection Type |
1/2" NPT Male |
| Housing Material |
PPS (Polyphenylene Sulfide) |
| Electrical Connection |
Flying Leads |
| Supply Voltage Max |
- |
| Operating Temperature Max |
120°C |
| SVHC |
No SVHC (25-Jun-2020) |
Other details
| Brand |
SENSATA / CYNERGY3 |
| Part Number |
RSF86Y100R |
| Quantity |
Each |
| Technical Data Sheet (225.50KB) EN |
View or download |
