Product Overview

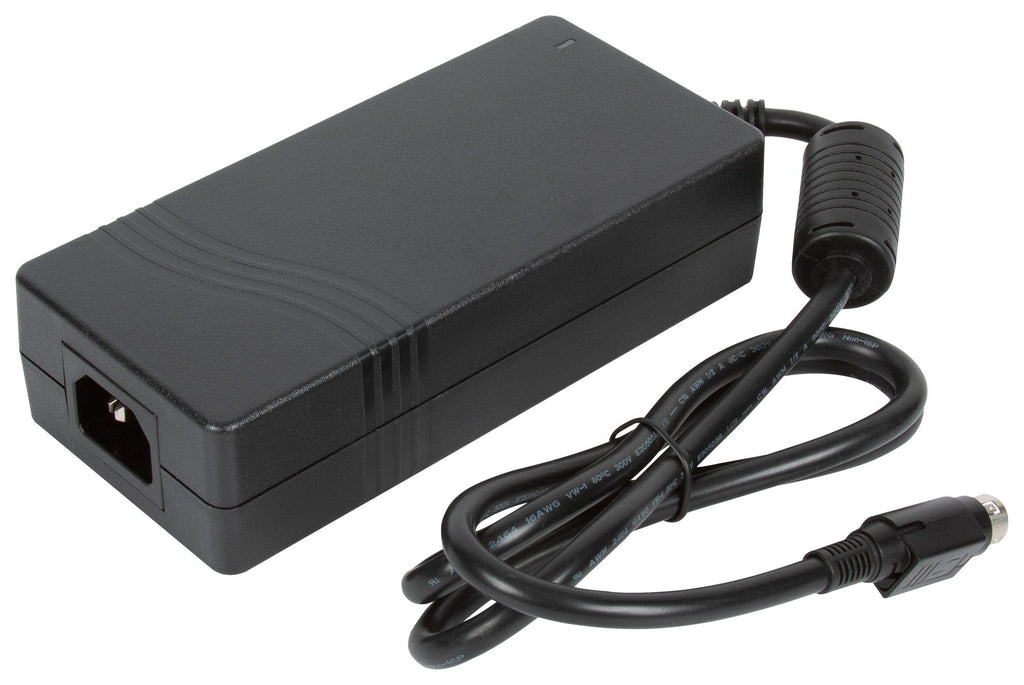

AEJ160PS12 is a 160W desktop AC to DC power supply for industrial electronics applications. The AEJ160 series of ITE approved desktop adapter features active power factor correction and comply with the latest international efficiency requirements including Level VI and EU2019/1782. The 160W AEJ160 with low standby power <lt/>0.15W suitable for many applications in the industrial electronics, instrumentation and technology fields.
- Input voltage range from 90 to 264VAC, output voltage is 12VDC
- Output current is 12.5A, efficiency is 91%
- Active power factor correction
- Overvoltage and overload protection
- Short circuit protection
- I/O isolation of 3000VAC
- Operating temperature range from -20 to +65°C
- Dimension is 150.0 x 70.0 x 38.0mm
- 3 year warranty
Product details
| Power Supply Applications |
ITE |
| Output Power Max |
160W |
| Output Current - Output 1 |
12.5A |
| Output Current - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Power Supply Output Type |
Fixed |
| Product Range |
AEJ160 Series |
| SVHC |
No SVHC (15-Jan-2018) |
| No. of Outputs |
1 Output |
| Output Voltage - Output 1 |
12V |
| Output Voltage - Output 2 |
- |
| Output Connector |
4 Way Mini DIN |
| Output Current - Output 3 |
- |
| Input Voltage VAC |
90V AC to 264V AC |
| Plug Type |
EU |
Other details
| Brand |
XP POWER |
| Part Number |
AEJ160PS12 |
| Quantity |
Each |
| Technical Data Sheet (1.77MB) EN |
View or download |
