Product Overview

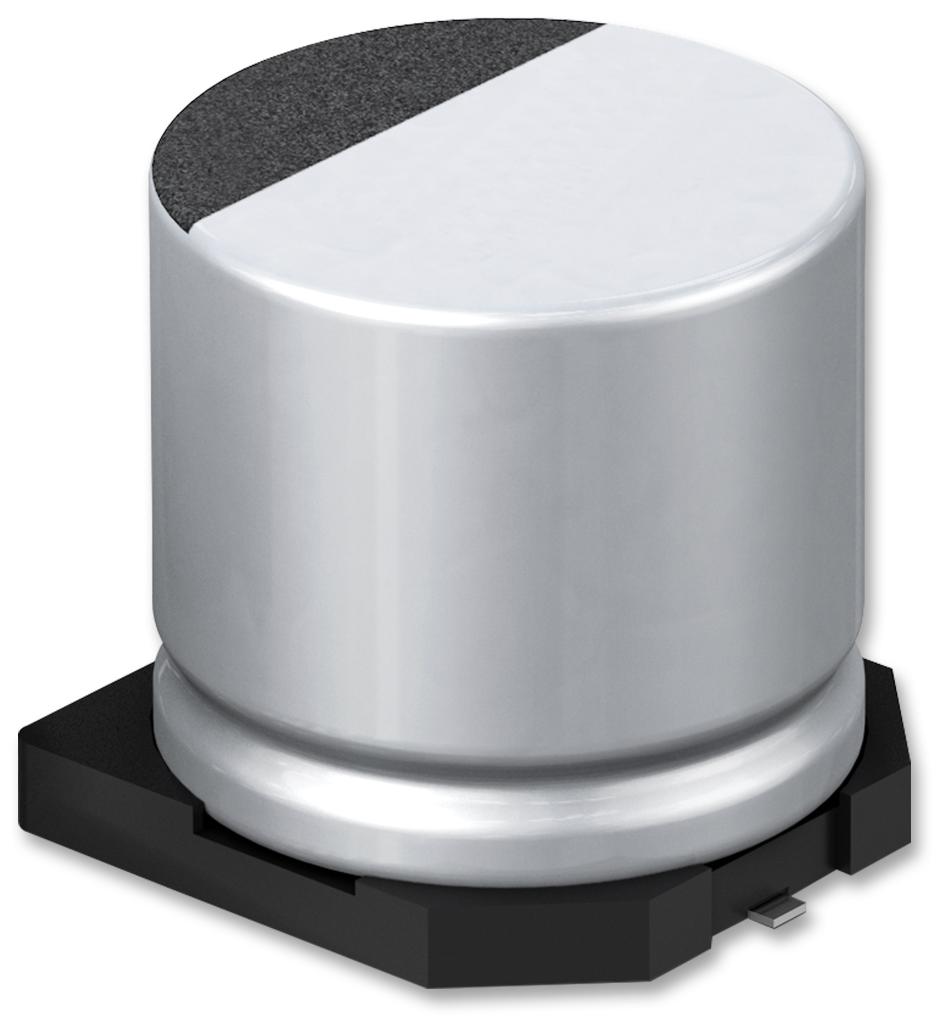

MAL218297802E3 is a 182 CPHZ low impedance, hybrid conductive polymer aluminium SMD chip capacitor. Typical applications include industrial and professional applications, telecommunications and IT and portable and mobile equipment.
- 22µF capacitance value with ±20% tolerance
- Voltage rating is 63V
- Long service life of up to 10000hours at 105°C
- Very low ESR and highest ripple current
- Temperature range from -55°C to +105°C
Product details
| Capacitance |
22µF |
| Voltage(DC) |
63V |
| ESR |
0.08ohm |
| Product Diameter |
6.3mm |
| Product Width |
- |
| Operating Temperature Min |
-55°C |
| Product Range |
182 CPHZ Series |
| SVHC |
No SVHC (25-Jun-2025) |
| Capacitance Tolerance |
± 20% |
| Capacitor Case / Package |
Radial Can - SMD |
| Lifetime @ Temperature |
10000 hours @ 105°C |
| Product Length |
- |
| Product Height |
6.3mm |
| Operating Temperature Max |
105°C |
| Qualification |
- |
Other details
