STMICROELECTRONICS STM32C011F4P6 ARM MCU, STM32 Family STM32C0 Series Microcontrollers, ARM Cortex-M0+, 32 bit, 48 MHz, 16 KB

STM32C011F4P6 is a mainstream microcontroller based on a high-performance Arm® Cortex®-M0+ 32-bit RISC core operating at up to 48 MHz frequency. Offering a high level of integration, this is suitable for a wide range of applications in consumer, industrial, and appliance domains and is ready for the Internet of Things (IoT) solutions. The device incorporates a memory protection unit (MPU), high-speed embedded memories (6Kbytes of SRAM and up to 32Kbytes of flash program memory with read and write protection), DMA, an extensive range of system functions, enhanced I/Os, and peripherals. The devices offer standard communication interfaces (one I²Cs, one SPI / one I²S, and two USARTs), one 12bit ADC (2.5MSps) with up to 15 channels, a low-power RTC, an advanced control PWM timer, four general-purpose 16bit timers, two watchdog timers, and a SysTick timer.

• General-purpose type, 16Kbytes flash memory
• CRC calculation unit, reset and power management
• Power-on/power-down reset (POR/PDR), programmable brownout reset (BOR)
• Low-power modes sleep, stop, standby, shutdown
• Clock management, 4 to 48MHz crystal oscillator, internal 48MHz RC oscillator (±1 %)
• Up to 18 fast I/Os, all mappable on external interrupt vectors, multiple 5V-tolerant I/Os
• 3-channel DMA controller with flexible mapping, calendar RTC with alarm
• One SPI (24 Mbit/s) with 4- to 16bit programmable bitframe, multiplexed with I²S interface

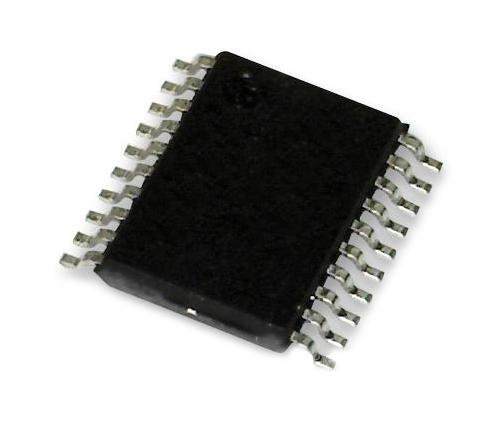

• 20-pin TSSOP package type
• Temperature rating range from -40 to 85°C (105°C junction)
