Product Overview
S70GL02GS11FHI020 is a S70GL02GS MIRRORBIT™ flash memory device is fabricated on 65-nm MIRRORBIT™ process technology. This device offers a fast page access time of 25ns with a corresponding random access time of 110ns. It features a write buffer that allows a maximum of 256 words/512bytes to be programmed in one operation, resulting in faster effective programming time than standard single byte/word programming algorithms. This makes the device an ideal product for today’s embedded applications that require higher density, better performance and lower power consumption.
- CMOS 3.0V core with versatile I/O™, single supply (VCC) for read / program / erase (2.7V to 3.6V)
- Versatile I/O feature- wide I/O voltage (VIO): 1.65V to VCC, ×16 data bus
- 16-word/32-byte page read buffer, 512byte programming buffer
- Programming in page multiples, up to a maximum of 512 bytes, uniform 128KB sectors
- Suspend and resume commands for program and erase operations
- Status Register, data polling, and ready/busy pin methods to determine device status
- Advanced sector protection (ASP), volatile and non-volatile protection methods for each sector
- Protects first or last sector, or first and last sectors of each device
- Industrial temperature range from (–40°C to +85°C)
- VIO = VCC = 2.7V to 3.6V, lowest address sector protected
Product details
| Flash Memory Type |
Parallel NOR |
| Memory Density |
2Gbit |
| Memory Configuration |
128M x 16bit |
| Interfaces |
Parallel |
| IC Case / Package |
FBGA |
| Clock Frequency Max |
- |
| Access Time |
110ns |
| Supply Voltage Max |
3.6V |
| IC Mounting |
Surface Mount |
| Operating Temperature Max |
85°C |
| SVHC |
No SVHC (25-Jun-2025) |
| Memory Size |
2Gbit |
| Flash Memory Configuration |
128M x 16bit |
| IC Interface Type |
Parallel |
| Memory Case Style |
FBGA |
| No. of Pins |
64Pins |
| Clock Frequency |
- |
| Supply Voltage Min |
2.7V |
| Supply Voltage Nom |
- |
| Operating Temperature Min |
-40°C |
| Product Range |
3V Parallel NOR Flash Memories |
Other details
| Brand |
INFINEON |
| Part Number |
S70GL02GS11FHI020 |
| Quantity |
Each |
| Technical Data Sheet (304.42KB) EN |
View or download |

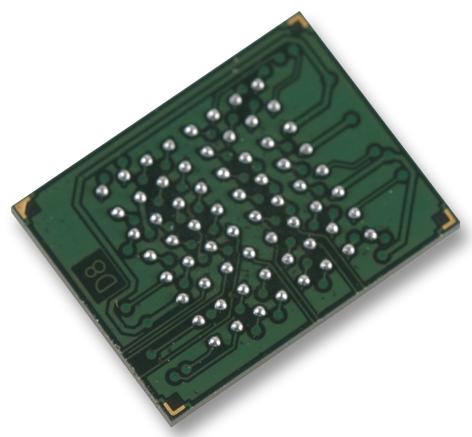

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
