Product Overview
CY7C1061G30-10BVJXI is a CY7C1061G 16Mbit (1M words × 16bit) static RAM with error-correcting code (ECC). To access device with a single chip enable input, assert the chip enable active-low (CE) input LOW. To access dual chip enable devices, assert both chip enable inputs active-low CE1 as LOW and CE2 as HIGH. All I/Os (I/O0 through I/O15) are placed in a high-impedance state when the device is deselected active-low (CE HIGH for a single chip enable device and active-low CE1 HIGH / CE2 LOW for a dual chip enable device), or control signals are de-asserted active-low (OE, BLE, BHE).
- Embedded error-correcting code (ECC) for single-bit error correction
- Low active and standby currents are ICC = 90mA typical at 100MHz, ISB2 = 20mA typical
- 1.0V data retention
- Transistor-transistor logic (TTL) compatible inputs and outputs
- Error indication (ERR) pin to indicate 1-bit error detection and correction
- 10ns speed, 2.2V–3.6V voltage range
- 48-ball VFBGA package
- Dual chip enable, address MSB A19 at ball G2
- Industrial ambient temperature range from –40°C to +85°C
- 110mA maximum operating current ICC
Product details
| Memory Size |
16Mbit |
| SRAM Memory Configuration |
1Mword x 16bit |
| Supply Voltage Range |
2.2V to 3.6V |
| Memory Case Style |
VFBGA |
| No. of Pins |
48Pins |
| Access Time |
10ns |
| Supply Voltage Nom |
- |
| IC Mounting |
Surface Mount |
| Operating Temperature Max |
85°C |
| Automotive Qualification Standard |
- |
| SRAM Type |
Asynchronous SRAM |
| Memory Density |
16Mbit |
| Memory Configuration |
1Mword x 16bit |
| IC Case / Package |
VFBGA |
| Supply Voltage Min |
2.2V |
| Supply Voltage Max |
3.6V |
| Clock Frequency Max |
- |
| Operating Temperature Min |
-40°C |
| Product Range |
- |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
INFINEON |
| Part Number |
CY7C1061G30-10BVJXI |
| Quantity |
Each |
| Technical Data Sheet (758.09KB) EN |
View or download |

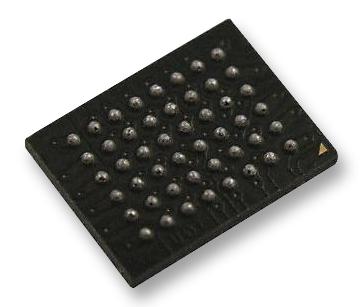

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
