Product Overview

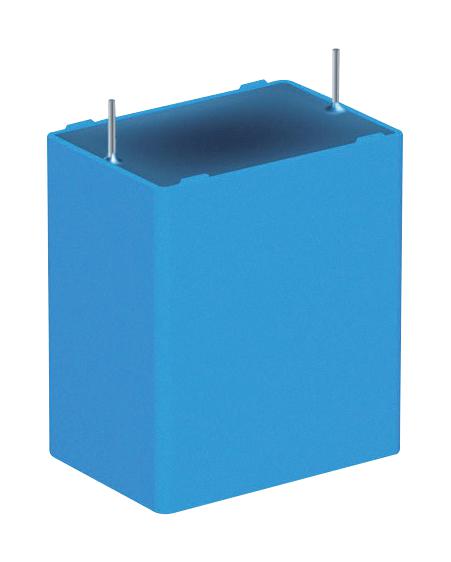

B32714H series metallized polypropylene film capacitor is typically used in frequency converters, industrial and high-end power supplies and solar inverters.
- High CV product, compact, good self-healing properties
- Overvoltage capability, 27.5mm lead spacing
- Low losses with high current capability
- High reliability, long useful life
- UL 810 construction, AEC-Q200D compliant
- Polypropylene (MKP) dielectric
- Plastic case (UL 94 V-0), epoxy resin sealing (UL 94 V-0)
- Maximum operating temperature is 105°C (case)
- Climatic category (IEC 60068-1: 55/105/56 40/105/56
- Parallel wire leads, lead-free tinned
Product details
| Dielectric Type |
Metallized PP |
| Capacitance |
2µF |
| Typical Applications |
Commercial, Industrial |
| Voltage(AC) |
- |
| Humidity Rating |
GRADE III (Test Condition A) |
| Lead Spacing |
27.5mm |
| Peak Current |
- |
| ESR |
0.0141ohm |
| Product Length |
31.5mm |
| Product Height |
23mm |
| Output (kvar) |
- |
| Operating Temperature Min |
-55°C |
| Qualification |
AEC-Q200 |
| Capacitor Case / Package |
Radial Box - 2 Pin |
| Capacitance Tolerance |
± 10% |
| Capacitor Mounting |
Through Hole |
| Voltage(DC) |
1.1kV |
| Capacitor Terminals |
PC Pin |
| dv/dt Rating |
85V/µs |
| RMS Current (Irms) |
5.9A |
| Product Diameter |
- |
| Product Width |
13.5mm |
| Ripple Current |
5.1A |
| Product Range |
B32714H Series |
| Operating Temperature Max |
105°C |
| SVHC |
No SVHC (25-Jun-2025) |
