Product Overview

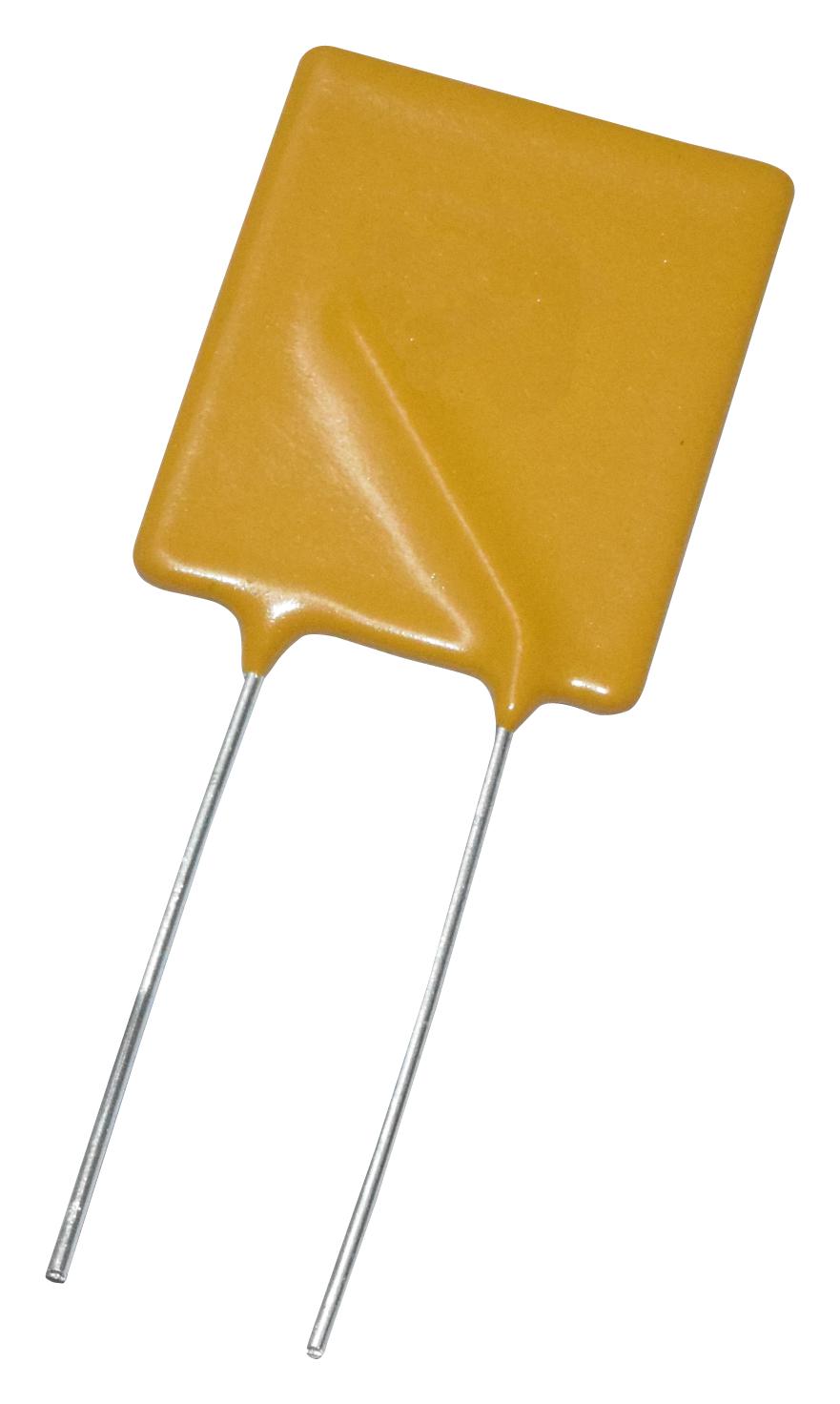

MP010849 is a rectangular PTC resettable fuse rated for 32 V DC, engineered to hold 7.5A under normal conditions and trip at 15A within approximately 13 seconds. It can withstand surge currents up to 100A and fits into a compact form factor measuring 21.1 × 24.9 × 3.8mm with 10.2mm lead spacing .
- UL and TUV approved
- Ensures reliable performance under normal workloads while providing protection during overloads
- Offers balanced response
- Ideal for applications with high inrush currents, such as motor drives or lamp circuits
- 32V DC rating with compact footprint
- Reliable in harsh and varied environmental conditions
Product details
| Product Range |
MP FHE |
| Holding Current |
7.5A |
| Time to Trip |
13s |
| Current Rating Max |
100A |
| Diameter |
- |
| Thickness |
3.8mm |
| Operating Temperature Min |
-40°C |
| Automotive Qualification Standard |
- |
| Voltage Rating |
32VDC |
| Trip Current |
15A |
| Fuse Shape |
Rectangular |
| Lead Spacing |
10.2mm |
| Length |
21.1mm |
| Height |
24.9mm |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MP010849 |
| Quantity |
Each |
| Technical Data Sheet (363.78KB) EN |
View or download |
