Product Overview

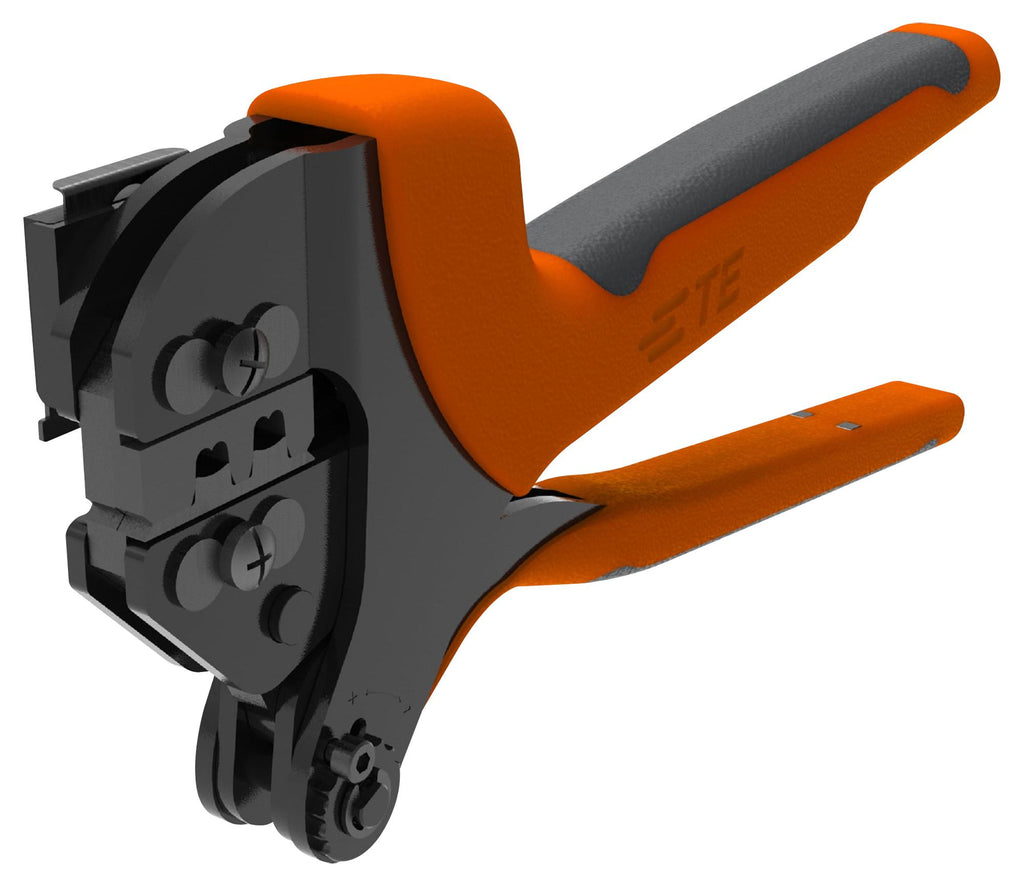

2391253-1 is a SDE-SA commercial hand tool assembly for the Type III+ (Size 16) contacts. The tool consists of the SDE-SA frame assembly (9-1478240-0). This tool is used to crimp the terminal part numbers (166824-2) (164161-9). The tool frame features two jaws, a handle, a ratchet adjustment wheel, and an emergency ratchet release. The die set consists of a crimper (upper die) and an anvil (lower die). The tool frame holds a die assembly with two crimping chambers. Die-retaining pins and die-retaining screws are used to secure the dies in the tool frame. The tool features a ratchet and an adjustment wheel with a range of settings. The ratchet ensures that the tool has completed the cycle and does not release until the handles have been fully closed, unless the emergency ratchet release is rotated to manually release the ratchet. The adjustment wheel controls the amount of handle pressure exerted on the dies during the crimping procedure.
- Wire size is 14mm², 18mm² to 16mm²
- Number of conductors 1
- Diameter is 2.79mm to 3.81mm, 2.03mm to 2.54mm
- Strip length is 3.58mm to 4.34mm
Product details
| Crimp Tool Type |
Ratchet |
| Product Range |
SDE-SA Series |
| For Use With |
AMP Type III+ Series 164161-9 & 166824-2 18-14AWG Terminals |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
TE CONNECTIVITY |
| Part Number |
2391253-1 |
| Quantity |
Each |
| Technical Data Sheet (79.37KB) EN |
View or download |
