Product Overview

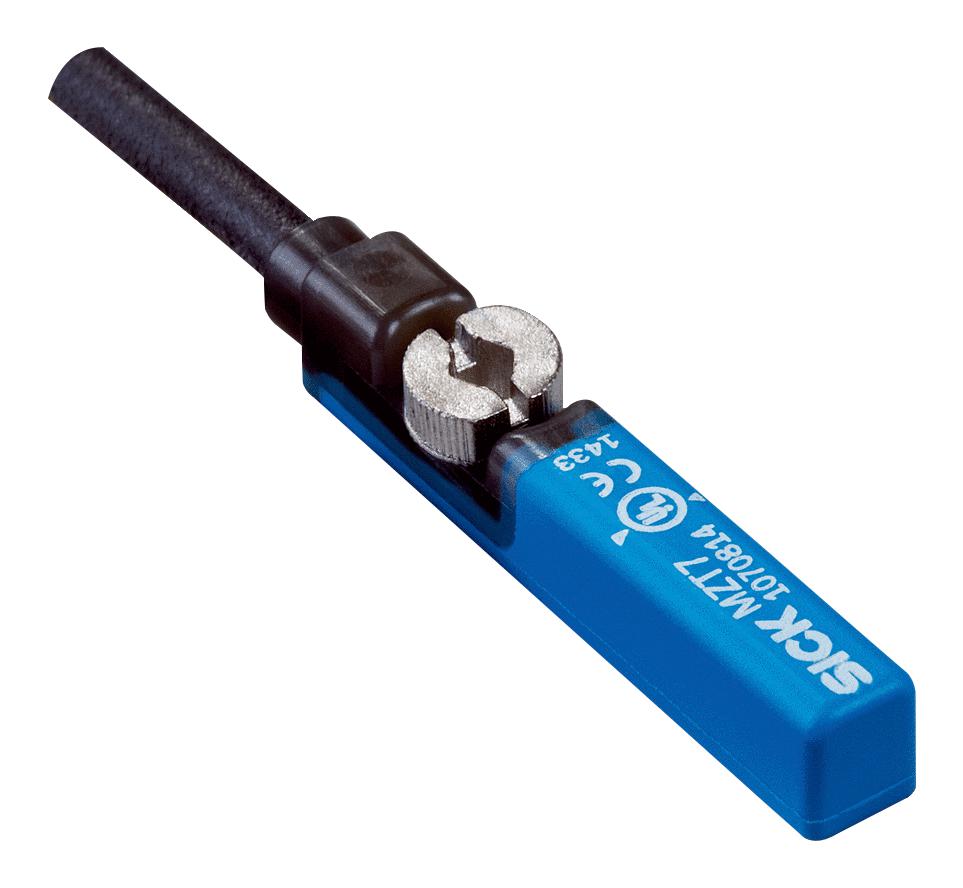

- MZT7 series sensor for T-slot cylinder
- 29.5mm housing length, PNP switching output, 1,000Hz switching frequency
- NO output function, DC 3-wire electrical wiring, IP65, IP67 enclosure rating
- 10VDC to 30VDC supply voltage range, 8mA without load power consumption
- ≤100mA continuous current, III protection class, PUR cable material, ≤ 2V voltage drop
- Reverse polarity protection, short-circuit protection
- 0.14mm² conductor cross section, Ø2.9mm cable diameter
- Cable with connector M8, 3-pin, drag chain use, 0.3m connection type
- Axial cable outlet, plastic housing material
- Ambient operating temperature range from -30°C to +80°C
Product details
| Supply Voltage DC Min |
10V |
| Supply Voltage DC Max |
30V |
| Sensor Mounting |
Bracket |
| Supply Voltage Max |
30VDC |
| IP Rating |
IP65, IP67 |
| Sensor Housing |
T-Slot |
| Cylinder Type |
T-Type Cylinder |
| Sensing Method |
- |
| Supply Voltage Min |
10VDC |
| Connection Method |
Cable with 3 Pin M8 Connector |
| Product Range |
MZT7 Series |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
SICK |
| Part Number |
MZT7-03VPS-KP0 |
| Quantity |
Each |
| Technical Data Sheet (545.34KB) EN |
View or download |
