Product Overview

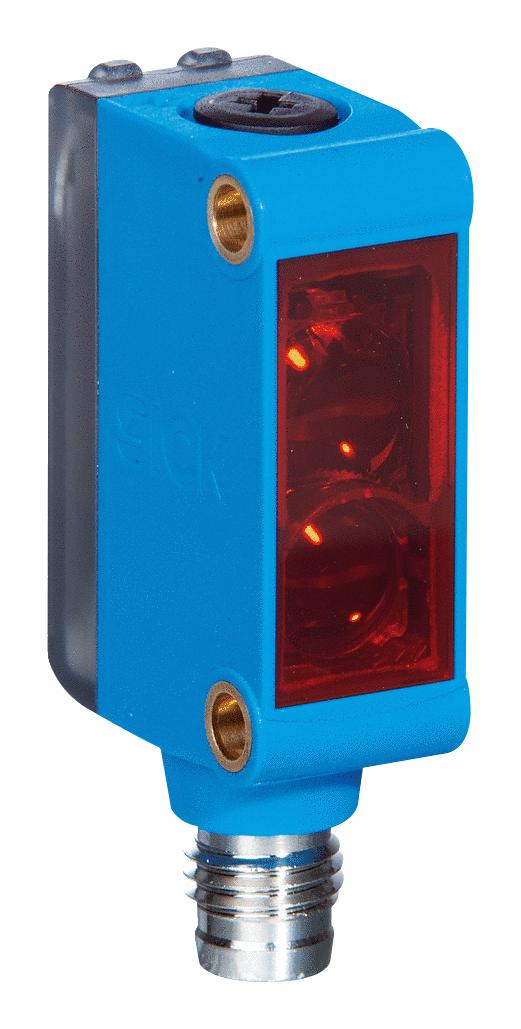

GTB6-P4231 is a G6 series miniature photoelectric sensor. It includes circuit protection (VS connections reverse-polarity protected, inputs and output reverse-polarity protected, outputs overcurrent and short-circuit protected).
- Photoelectric proximity sensor and background suppression functional principle
- 5mm to 400mm max sensing range, 50mm to 220mm sensing range
- PinPoint LED light source, visible red type of light, Ø 6mm (100mm) light spot size (distance)
- 625nm wave length, mechanical spindle, 5 turns adjustment
- 10VDC to 30VDC supply voltage range, 32mA current consumption
- III protection class, PNP type, ≤ 100mA max output current, plastic, ABS/PC housing
- <lt/>1.2ms response time, 500Hz switching frequency, light/dark switching mode
- Rectangular housing, male connector M8, 4-pin connection, IP67 enclosure rating
- Dimension (W x H x D) is 12mm x 31.5mm x 21mm
- Ambient operating temperature range from -25°C to +55°C
Product details
| Sensing Range Max |
400mm |
| Sensor Output Type |
PNP |
| Product Range |
G6 Series |
| Connection Method |
M8 Connector |
| Supply Voltage DC Max |
30V |
| SVHC |
No SVHC (04-Feb-2026) |
| Sensing Distance Max |
400mm |
| Sensing Method |
Proximity Diffuse |
| Supply Voltage DC Min |
10V |
| Supply Voltage Min |
10V |
| Supply Voltage Max |
30V |
Other details
| Brand |
SICK |
| Part Number |
GTB6-P4231 |
| Quantity |
Each |
| Technical Data Sheet (422.74KB) EN |
View or download |
