Product Overview

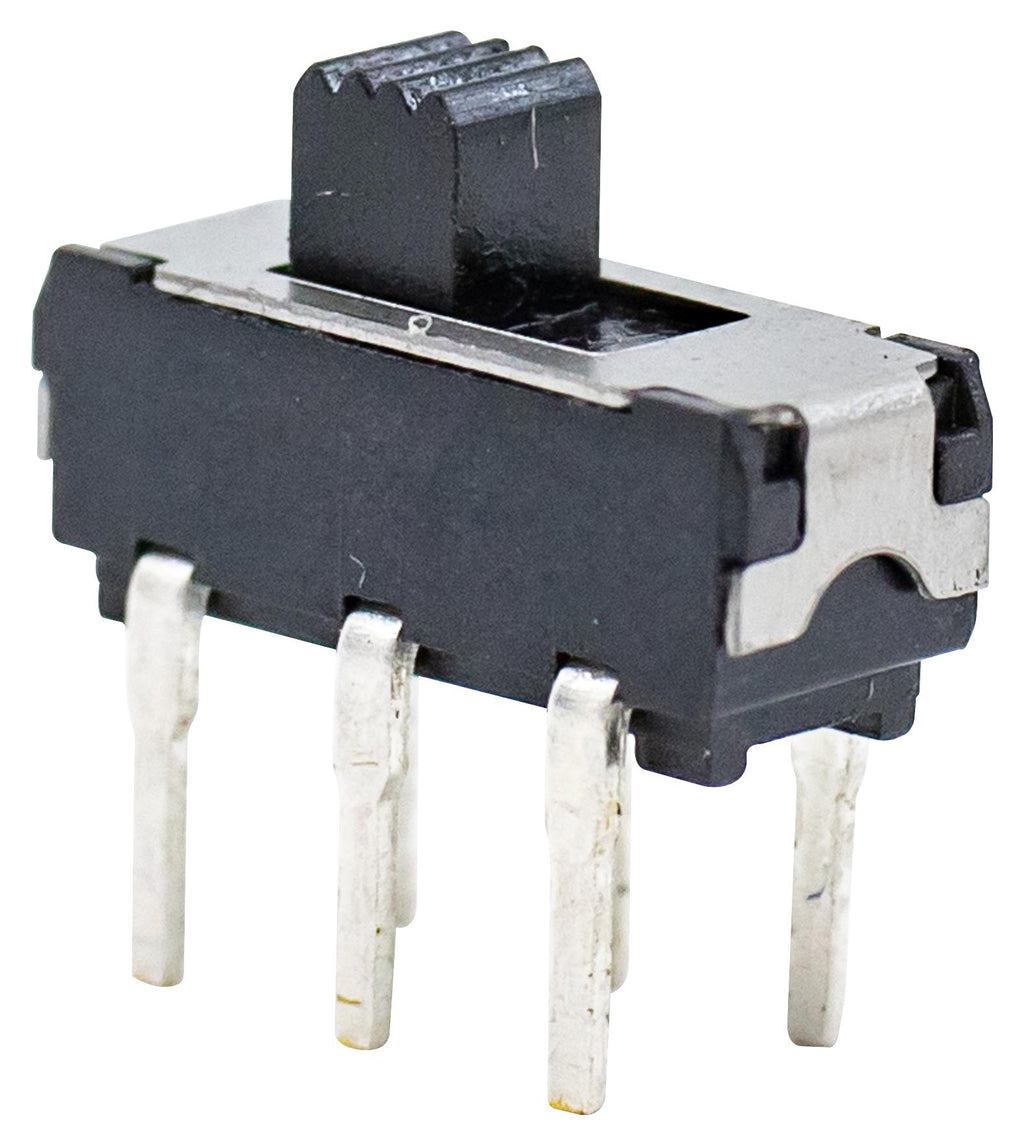

The EG1271 is a subminiature SPDT slide switch from E-Switch, designed for through-hole mounting in compact electronic applications. It features a vertical orientation and operates in an On-On configuration, allowing the user to toggle between two circuit paths. The switch is rated for a maximum current of 300mA at 30V DC, making it suitable for low-voltage control circuits. Its construction supports reliable mechanical and electrical performance, and it is part of the EG Series known for compact form factors and dependable switching. It is supplied in bulk packaging and is commonly used in consumer electronics, instrumentation, and other applications where space-saving and reliable switching are essential.
- Switch Type: Slide, SPDT
- Function: On-On (non-shorting)
- Mounting Style: PCB, Vertical
- Termination Style: Solder terminals
- Current Rating: 300mA @ 30V DC
- Actuator Length: 4mm
- Switch Travel: 2.5mm
- Contact Material: Copper alloy
- Contact Finish: Silver
- Operating Temperature: -20°C to +70°C
- Operating Force: 200gf
Product details
| Contact Configuration |
SPDT |
| Switch Mounting |
Through Hole |
| Contact Current Max |
300mA |
| Contact Voltage DC Max |
30V |
| SVHC |
No SVHC (25-Jun-2025) |
| Switch Operation |
- |
| Product Range |
EG Series |
| Contact Voltage AC Max |
- |
| Orientation |
Vertical |
Other details
| Brand |
E-SWITCH |
| Part Number |
EG1271 |
| Quantity |
Each |
| Technical Data Sheet (2.61MB) EN |
View or download |
