Product Overview

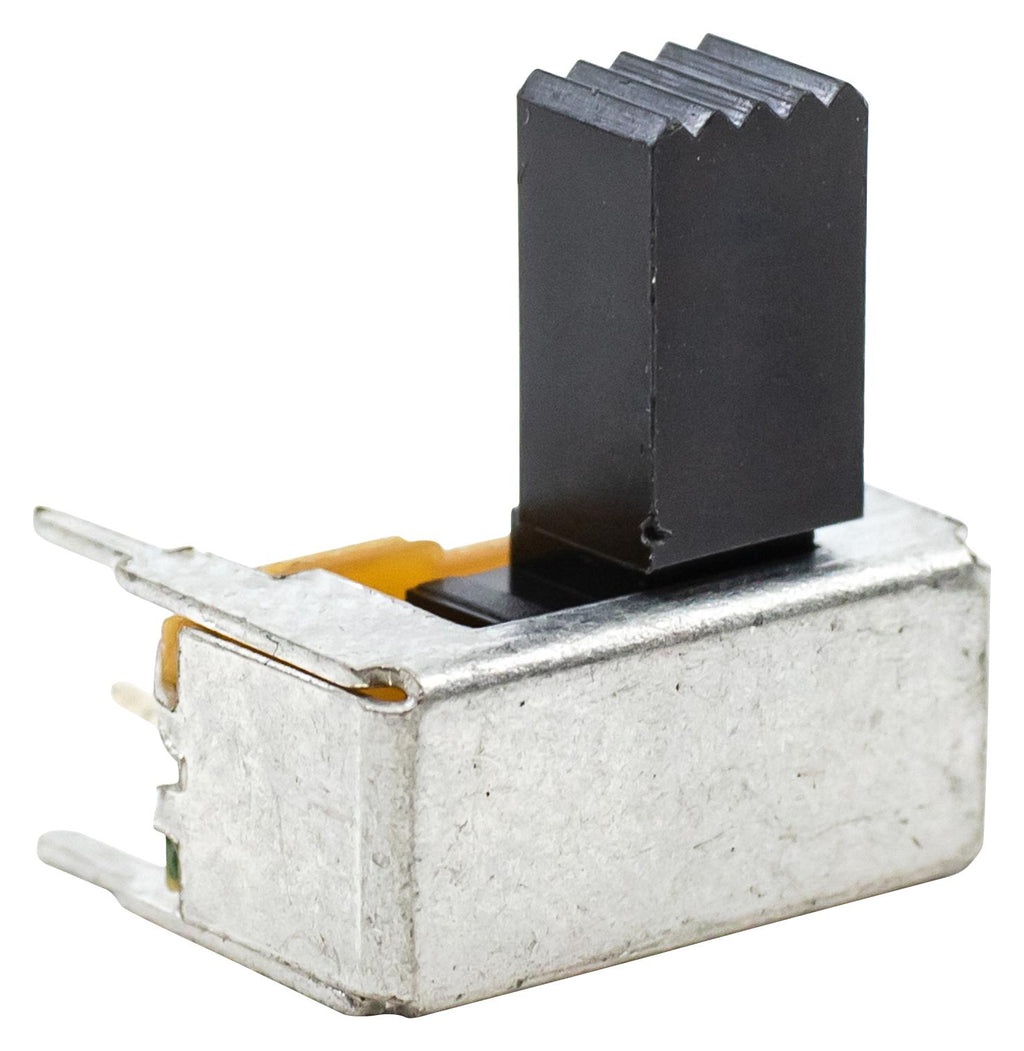

The EG1224 is a subminiature SPDT slide switch manufactured by E-Switch, designed for compact and low-voltage electronic applications. It features a standard On-On switching function with non-shorting (break-before-make) contact timing, allowing reliable toggling between two circuit paths. The switch is panel or PCB mountable, with solder terminals for secure electrical connections. Its actuator is 4.00 mm in length and offers a smooth slide motion with a travel distance of 2.5 mm. The operating force required is approximately 200 grams-force, providing a tactile feel without being overly stiff. Rated for 200mA at 30V DC, the EG1224 is built with silver-plated contacts to ensure consistent conductivity and durability. It performs reliably across a temperature range of -20°C to +70°C and is rated for a minimum of 10,000 electrical cycles.
- Switch Type: Slide, SPDT
- Function: On-On (non-shorting)
- Mounting Style: PCB, Right Angle
- Termination Style: Solder terminals
- Current Rating: 200mA @ 30V DC
- Actuator Length: 4mm
- Switch Travel: 2.5mm
- Contact Material: Copper alloy
- Contact Finish: Silver
- Operating Temperature: -20°C to +70°C
- Operating Force: 200gf
Product details
| Contact Configuration |
SPDT |
| Switch Mounting |
Through Hole |
| Contact Current Max |
500mA |
| Contact Voltage DC Max |
15V |
| SVHC |
No SVHC (25-Jun-2025) |
| Switch Operation |
- |
| Product Range |
EG Series |
| Contact Voltage AC Max |
- |
| Orientation |
Right Angle |
Other details
| Brand |
E-SWITCH |
| Part Number |
EG1224 |
| Quantity |
Each |
| Technical Data Sheet (2.61MB) EN |
View or download |
