Product Overview

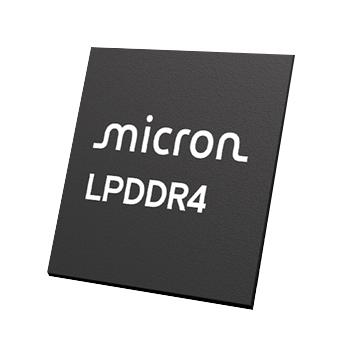

MT53E256M32D2FW-046 AUT:B is a 4Gb mobile low-power DDR4 SDRAM with low VDDQ. It is a high-speed CMOS, dynamic random-access memory. This memory is internally configured with x16 I/O, 8-banks. Each of the x16’s 536,870,912-bit banks are organized as 32,768 rows by 1024 columns by 16bits. It has directed per-bank refresh for concurrent bank operation and ease of command scheduling. This memory has on-chip temperature sensor to control self refresh rate. It has clock-stop capability.
- Operating voltage range is 1.10V (VDD2)/0.60V or 1.10V (VDDQ)
- 256Meg x 32 configuration, =LPDDR4, 2die addressing, B design

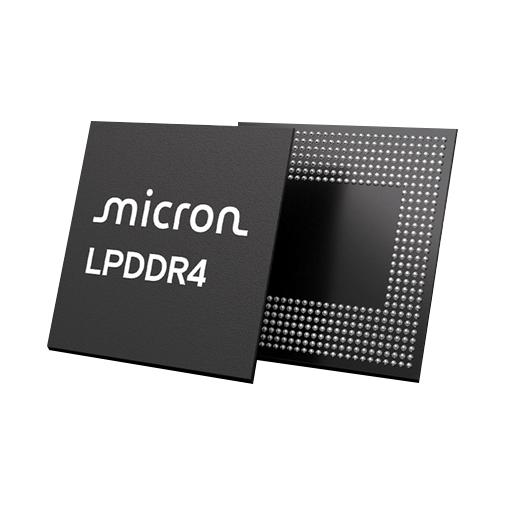

- Packaging style is 200-ball TFBGA 10 x 14.5 x 1.1mm (Ø0.40 SMD)
- Cycle time is 468ps at RL = 36/40, partial-array self refresh (PASR)
- Operating temperature range is –40°C to +125°C, automotive qualified
- Clock rate is 2133MHz, data rate per pin is 4266Mb/s
- Ultra-low-voltage core and I/O power supplies
- 16n prefetch DDR architecture, 8 internal banks per channel for concurrent operation
- Single-data-rate CMD/ADR entry, bidirectional/differential data strobe per byte lane
- Programmable READ and WRITE latencies (RL/WL), selectable output drive strength (DS)
Product details
| DRAM Type |
Mobile LPDDR4 |
| Memory Configuration |
256M x 32bit |
| IC Case / Package |
TFBGA |
| Supply Voltage Nom |
1.1V |
| Operating Temperature Min |
-40°C |
| Product Range |
- |
| Memory Density |
8Gbit |
| Clock Frequency Max |
2.133GHz |
| No. of Pins |
200Pins |
| IC Mounting |
Surface Mount |
| Operating Temperature Max |
125°C |
Other details
| Brand |
MICRON |
| Part Number |
MT53E256M32D2FW-046 AUT:B |
| Quantity |
Each |
