Product Overview

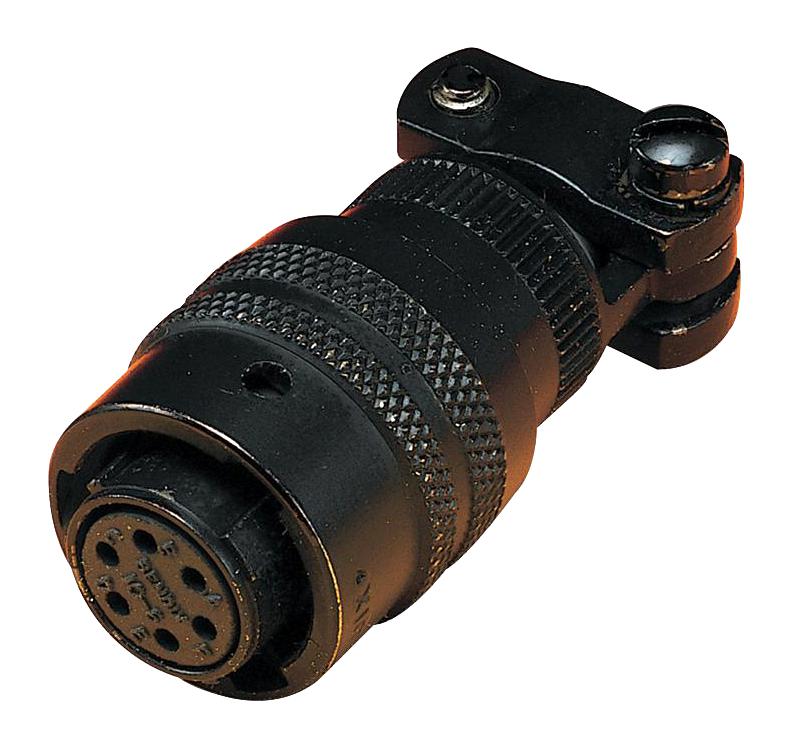

PT06F10-6S is a PT series connector provides an efficient method of connecting pressure transducers to associated instrumentation with multiconductor cable. The solder contacts are designed to provide positive connections for signal or power circuitry. The connector come in a selection of operating temperature ranges to meet most industrial applications.
- 6 female contacts
- Temperature range from -55 to 125°C
- Indoor use
- Rugged aluminium shells
- Strain-relief cable clamp
- Secure solder contacts
- #20AWG wire size
- High-conductivity gold-plated contacts
- Air pressure is 30psi at -55°C
Product details
| Connector Type |
Standard Circular Connector |
| Product Range |
PT Series |
| No. of Contacts |
6Contacts |
| Coupling Style |
Twist Lock |
| Connector Body Plating |
Olive Drab Chromate over Cadmium |
| Contact Plating |
Gold |
| SVHC |
Lead (04-Feb-2026) |
| Circular Connector Shell Style |
Straight Plug |
| Circular Connector Contact Type |
Solder Socket |
| Connector Body Material |
Aluminum Alloy Body |
| Contact Material |
Copper Alloy |
| IP Rating |
- |
Other details
| Brand |
OMEGA |
| Part Number |
PT06F10-6S |
| Quantity |
Each |
| Technical Data Sheet (226.19KB) EN |
View or download |
