Description
Product Overview
ADM3260 is a hot swappable, dual I²C isolator with integrated DC-to-DC converter. Based on the iCoupler® and isoPower® chip scale transformer technology this digital and power isolator with two nonlatching, bidirectional communication channels, supporting a complete isolated I²C interface, and an integrated isolated dc-to-dc converter, supporting up to 150mW of isolated power conversion. iCoupler is a chip scale transformer technology with functional, performance, size, and power consumption advantages as compared to optocouplers. Safety and regulatory approvals are UL recognition, 2500V rms for 1 minute per UL 1577, CSA Component Acceptance Notice 5A, DIN V VDE V 0884-10 (VDE V 0884-10):2006-12, VIORM = 560 V peak. Typical applications are isolated I²C, SMBus, and PMBus interfaces, multilevel I²C interfaces, central office switching, telecommunication and data communication equipment, networking.
- Open-drain interfaces
- Thermal coefficient is −44µV/°C typical (TA=25°C, VIN=VISO=5V)
- Output ripple is 75mV p-p typical (20MHz bandwidth, COUTPUT-BYPASS=0.1µF / 10µF, IISO=27mA, TA=25°C)
- Output noise is 200mV p-p typical (COUTPUT-BYPASS=0.1µF / 10µF, IISO=27mA, TA=25°C, VIN=VISO=5V)
- Switching frequency is 125MHz typical (TA=25°C, VIN=VISO=5V)
- Efficiency at IISO (max) is 29% typ (ISO=27mA, TA=25°C, VIN=VISO=5V)
- Shutdown temperature is 154°C typ (TA=25°C, VIN=VISO=5V)

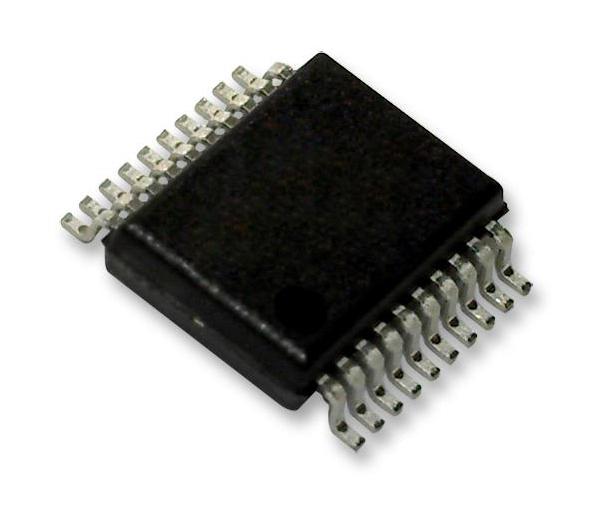

- 20-lead shrink small outline package [SSOP]
- Temperature rating range from -40°C to +105°C
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
| No. of Channels | 2Channels |
| Supply Voltage Max | 5.5V |
| No. of Pins | 20Pins |
| Input Level | CMOS |
| Isolation IC Type | Digital Isolator |
| Isolation Voltage | 2.5kV |
| Operating Temperature Max | 105°C |
| Qualification | - |
| SVHC | No SVHC (04-Feb-2026) |
| Supply Voltage Min | 3V |
| IC Case / Package | SSOP |
| Data Rate | - |
| Output Level | CMOS |
| Isolation Type | Magnetic |
| Operating Temperature Min | -40°C |
| Product Range | - |
| MSL | MSL 3 - 168 hours |
Other details
| Brand | ANALOG DEVICES |
| Part Number | ADM3260ARSZ |
| Quantity | Each |
| Product Change Notice (59.75KB) EN | View or download |
| Technical Data Sheet (614.01KB) EN | View or download |
