Description
Product Overview
LT®1025 is a micropower thermocouple cold junction compensator for use with type E, J, K, R, S and T thermocouples. It utilizes wafer level and post-package trimming to achieve 0.5°C initial accuracy. Special curvature correction circuitry is used to match the bow found in all thermocouples so that accurate cold junction compensation is maintained over a wider temperature range. Typical applications are thermocouple cold junction compensator, centigrade thermometer, temperature compensation network.
- 80µA supply current
- 4V to 36V operation
- Auxiliary 10mV/°C output
- Temperature error at 10mV/°C, output is 0.5°C maximum ( TJ=25°C)
- Change in supply current is 0.05µA/V maximum (4V ≤ VIN ≤ 36V, TJ=25°C)

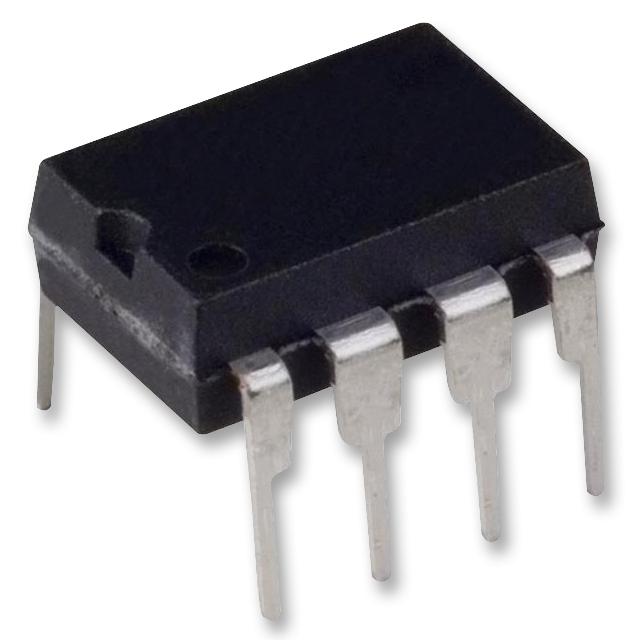

- 8-lead PDIP package
- Operating temperature rating range from 0°C to 70°C
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
| IC Output Type | Voltage |
| Accuracy | 0.5°C |
| Measured Temperature Min | - |
| Measured Temperature Max | - |
| Sensor Case Style | NDIP |
| No. of Pins | 8Pins |
| Supply Voltage Max | 36V |
| Resolution | - |
| Operating Temperature Min | 0°C |
| Product Range | - |
| MSL | MSL 1 - Unlimited |
| Sensor Output Type | Analogue |
| Sensing Accuracy Range | ± 0.3°C |
| Sensing Temperature Min | 0°C |
| Sensing Temperature Max | 70°C |
| Sensor Case / Package | DIP |
| Supply Voltage Min | 4V |
| No. of Channels | 1Channels |
| Output Interface | - |
| Operating Temperature Max | 70°C |
| Qualification | - |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | ANALOG DEVICES |
| Part Number | LT1025ACN8#PBF |
| Quantity | Each |
| Product Change Notice (57.04KB) EN | View or download |
| Technical Data Sheet (176.28KB) EN | View or download |
