Description
Product Overview

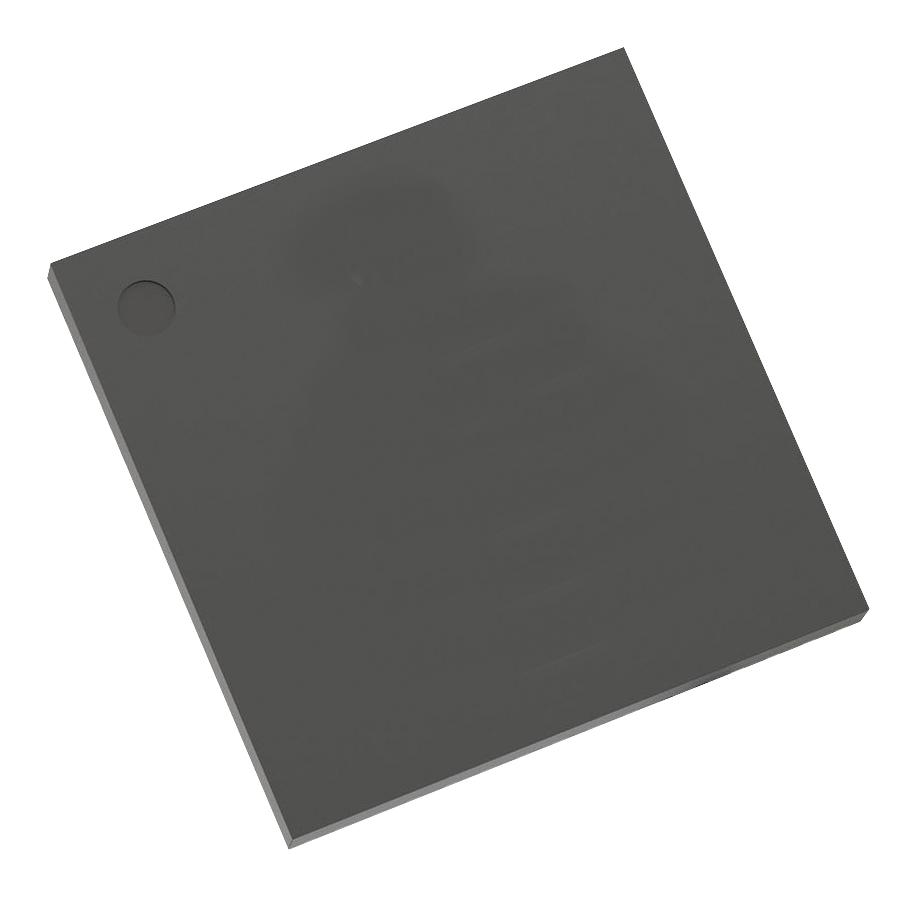

AD8235 is the smallest and lowest power instrumentation amplifier in the industry. The AD8235 is an excellent choice for signal conditioning. Typical application includes medical instrumentation, low-side current sense and portable electronics.
- Low power of 40μA maximum supply current and 6nA shutdown current
- Low input currents of 50pA input bias current and 25pA input offset current
- High Common Mode Rejection Ratio (CMRR) of 110dB, G = 100
- Space saving package
- Zero input crossover distortion
- Versatile: rail-to-rail input and output, shutdown
- Gain set with single resistor (G = 5 to 200)
- AD8236 μSOIC package version of AD8235
- 11 ball WLCSP package
- Operating temperature range from -40°C to 125°C
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
| No. of Channels | 1Channels |
| Slew Rate Typ | 0.011V/µs |
| Supply Voltage Range | 1.8V to 5.5V |
| No. of Pins | 11Pins |
| Instrumentation Amplifier Type | Micropower |
| Operating Temperature Min | -40°C |
| Product Range | - |
| MSL | MSL 1 - Unlimited |
| Automotive Qualification Standard | - |
| Slew Rate | 0.011V/µs |
| Amplifier Case Style | WLCSP |
| Input Offset Voltage | 2.5mV |
| Gain Bandwidth Product | 23kHz |
| IC Case / Package | WLCSP |
| CMRR | 110dB |
| IC Mounting | Surface Mount |
| Operating Temperature Max | 125°C |
| Qualification | - |
| SVHC | No SVHC (04-Feb-2026) |
| No. of Amplifiers | 1 Amplifier |
| Bandwidth | 23kHz |
| Amplifier Output | Rail to Rail |
Other details
| Brand | ANALOG DEVICES |
| Part Number | AD8235ACBZ-P7 |
| Quantity | Each |
| CAD CadSoft_EAGLE (2.47KB) EN | View or download |
| Technical Data Sheet (447.78KB) EN | View or download |
