Description
Product Overview

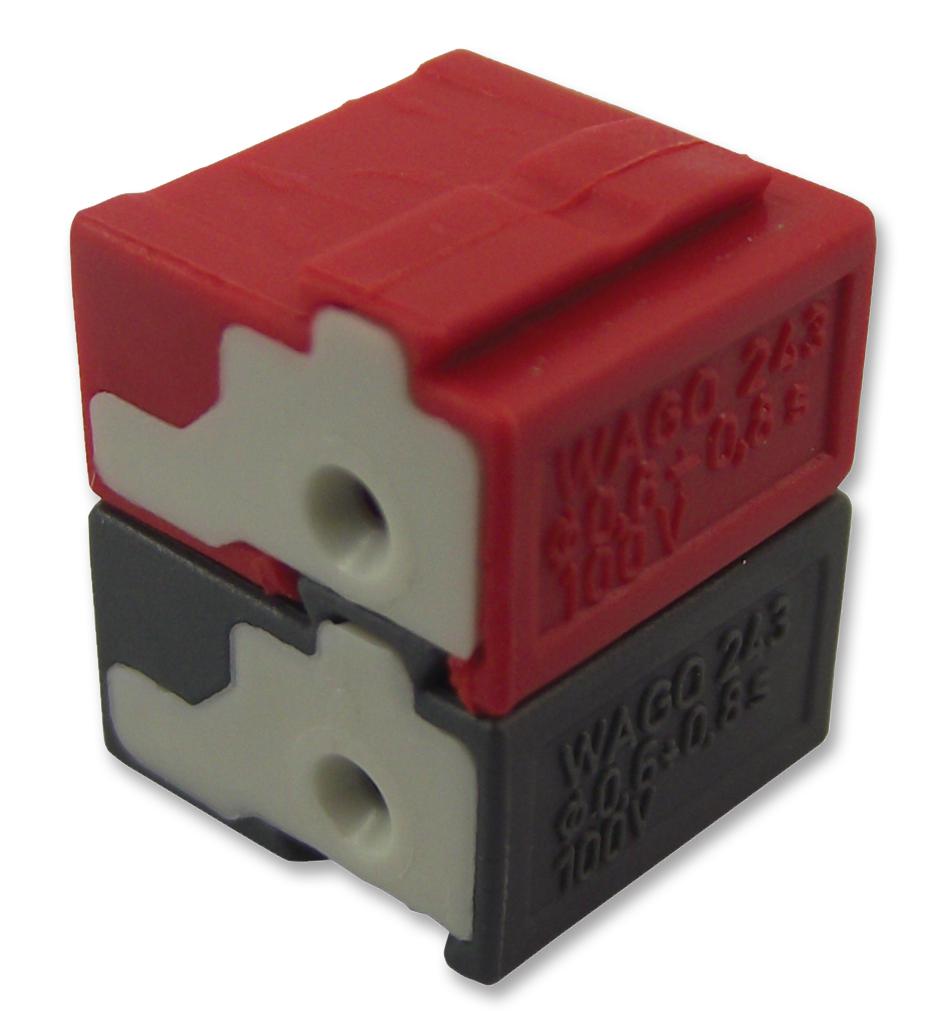

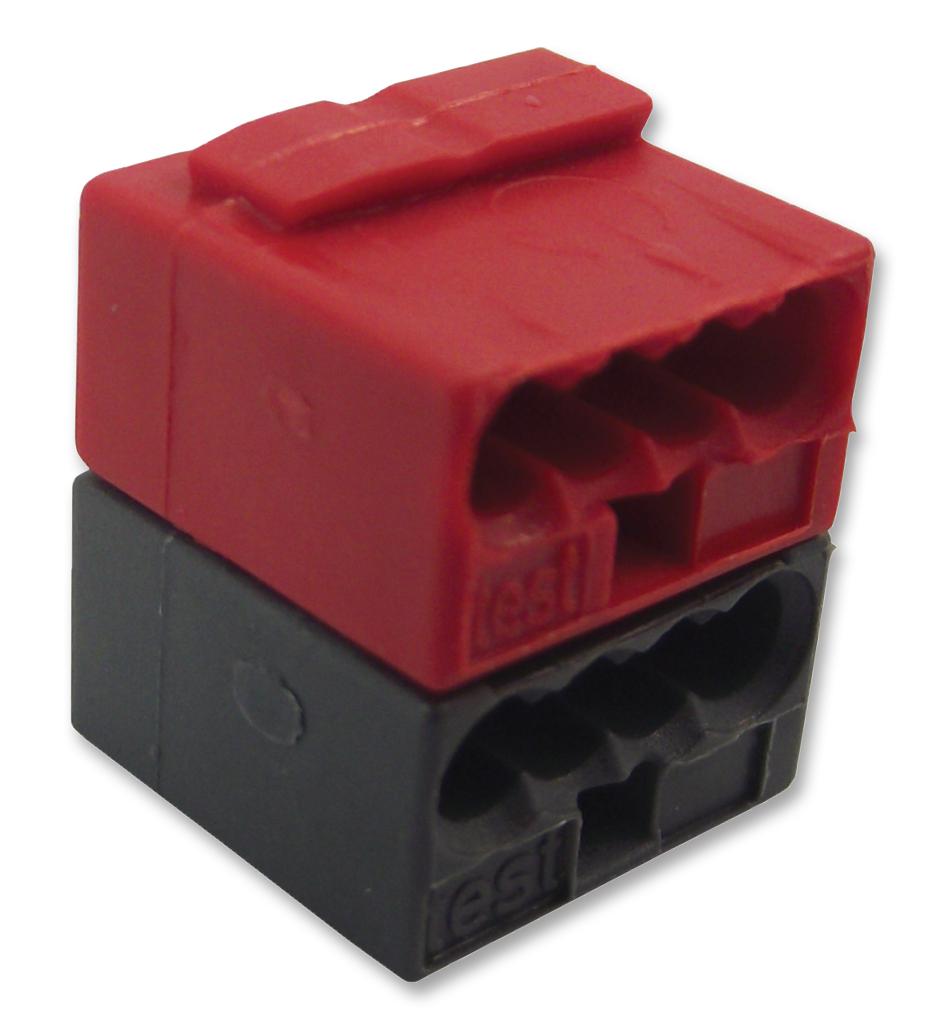

The 243-211 is a 4-conductor Compact Connector for EIB applications. With PUSH WIRE® connection technology for solid conductors. 4-Conductor entry allows devices to be replaced without disrupting the EIB bus connection.
- MICRO PUSH WIRE® Connector for Junction Boxes
- Solid Conductors: 0.6-0.8mmØ
- Current Rating: 6A
- Voltage Rating: 100V
- W: 10mm x H: 11.5mm x D: 10mm
- Ambient Temperature: 60°C
- Dark Grey/Red
- Side entry wiring type
Applications
Industrial, Communications & Networking, Lighting, Security, Signalling, HVAC
Product details
| Product Range | 243 |
| Pitch Spacing | - |
| Connector Mounting | Cable Mount |
| Wire Size AWG Min | 22AWG |
| Contact Material | Copper |
| No. of Contacts | 8Contacts |
| Connector Type | Terminal Block, Standard |
| Wire Size AWG Max | 20AWG |
| Contact Plating | Tin Plated Contacts |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | WAGO |
| Part Number | 243-211 |
| Quantity | Each |
| 3D Product Image (131.26KB) EN | View or download |
| Technical Data Sheet (115.98KB) EN | View or download |
| Drawing (1.11MB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 108.25 |
| 3-5 | ₹ 107.15 |
| 5-10 | ₹ 104.94 |
| 10+ | ₹ 102.73 |
Bulk discount will be automatically applied during checkout based on quantity.
