Description
Product Overview

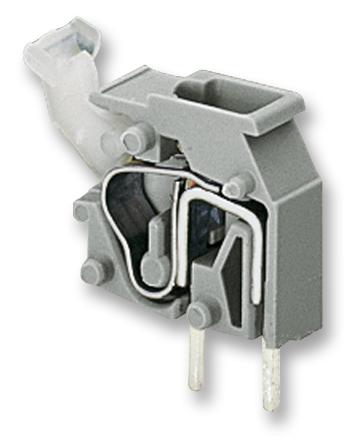

The 255-401 is a grey modular PCB Terminal Block with pushbutton and tin-plated contact.
- Convenient and Tool-free Operation
- Front-entry Wiring
- Chrome-nickel Spring Steel Clamping
- Electrolytic Copper Contact
- Polyamide 6.6 (PA 6.6) Insulating
Applications
Industrial
Product details
| Pitch Spacing | - |
| Wire Size AWG Min | 28AWG |
| Conductor Area CSA | 2.5mm² |
| Rated Current | 16A |
| Block Orientation | Through Hole Vertical |
| SVHC | No SVHC (04-Feb-2026) |
| No. of Positions | 1Ways |
| Wire Size AWG Max | 12AWG |
| Wire Connection Method | Push In |
| Rated Voltage | 500V |
| Product Range | - |
Other details
| Brand | WAGO |
| Part Number | 255-401 |
| Quantity | Each |
| Disclaimer (5.83KB) EN | View or download |
| Technical Data Sheet (106.95KB) EN | View or download |
| Drawing (1.12MB) EN | View or download |
| 3D Product Image (199.75KB) EN | View or download |
