Product Overview

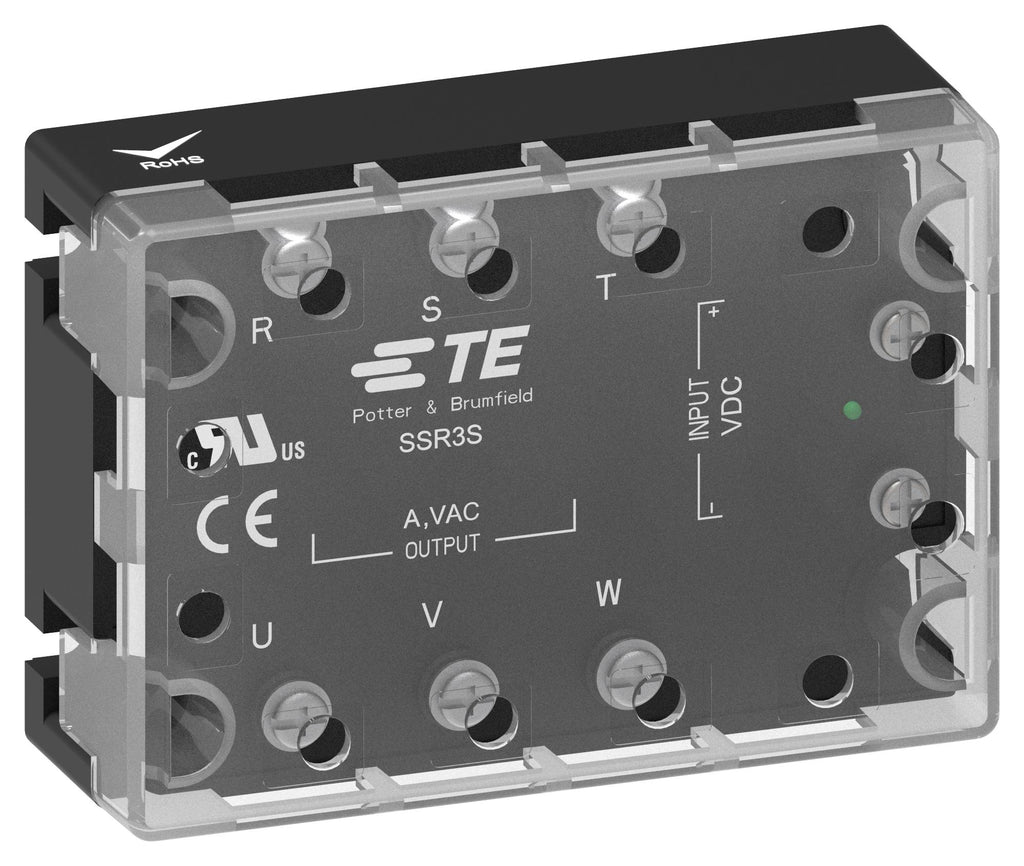

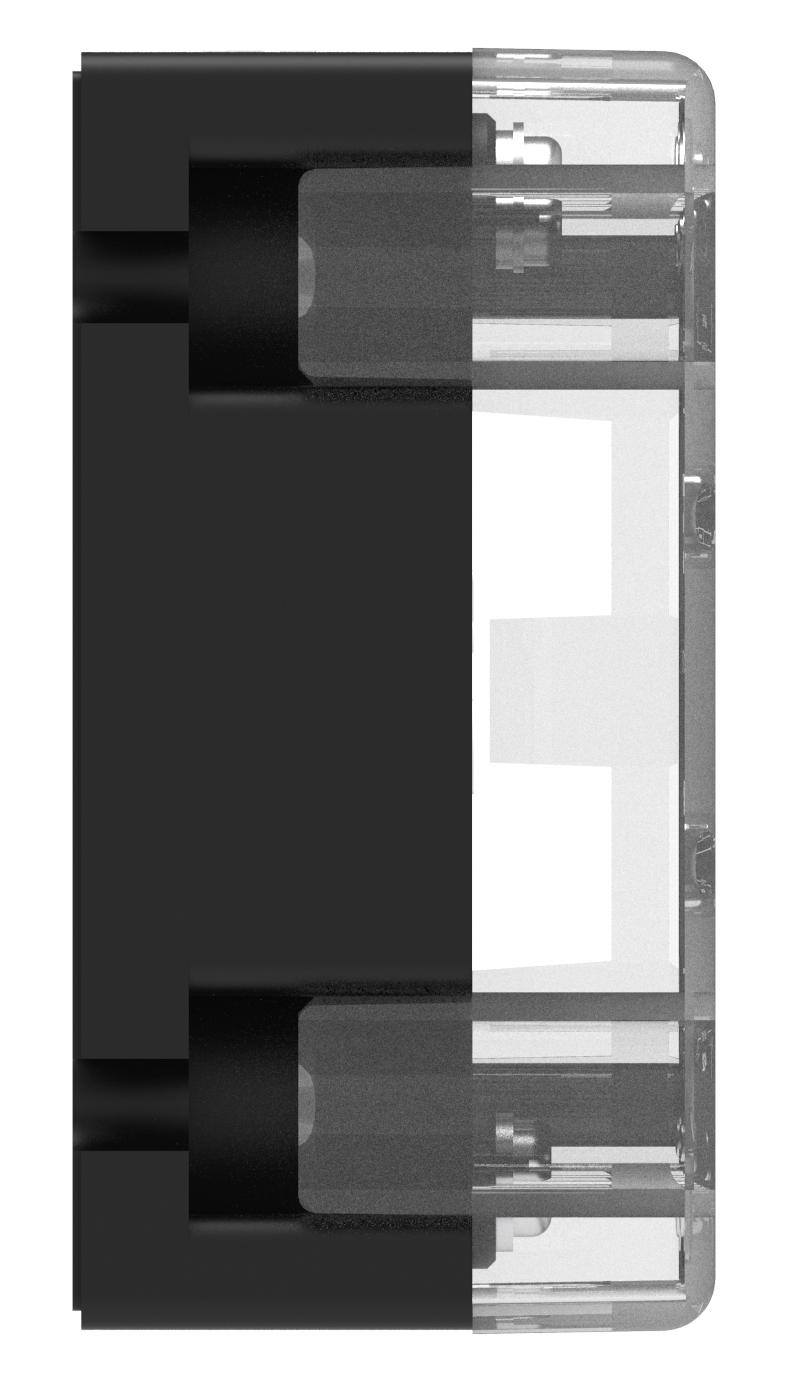

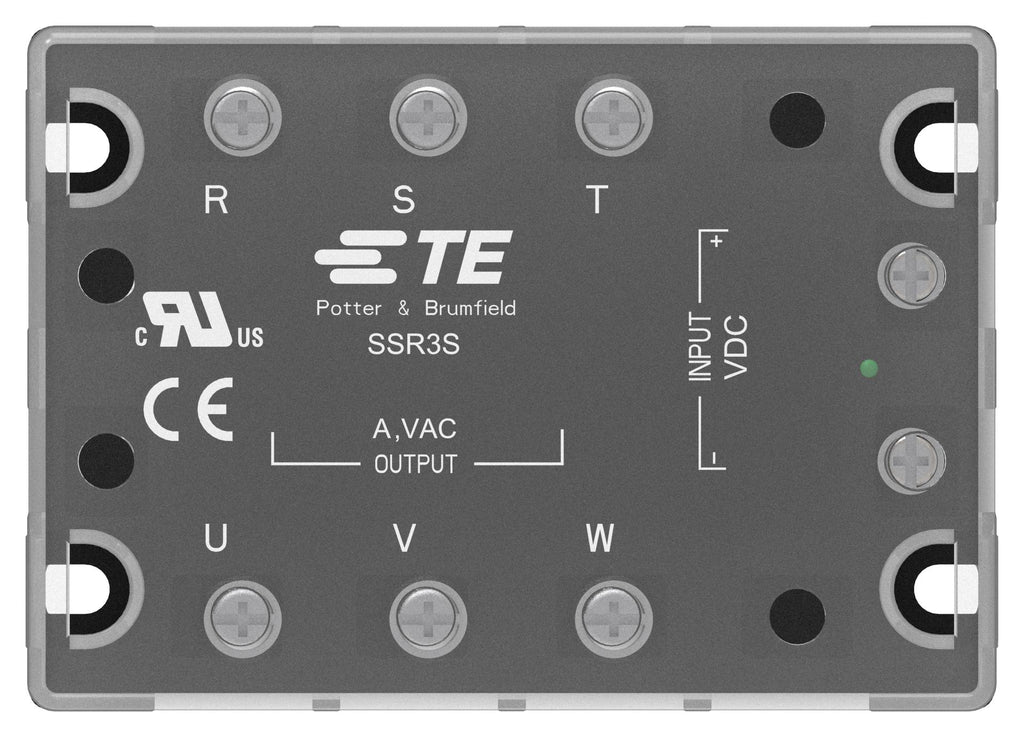

- SSR3 series three phase solid state relay with motor reversing
- LED indicator, TRIAC output
- 4000Vrms optical isolation, screw termination, hockey puck relay housing style
- Safety cover to meet IP 20 protection, epoxy filled
- Transient voltage protection by MOVs external, 480V line voltage, 4 - 32VDC input voltage
- Panel mountable, positive input interlock system
- Operating temperature range from -30°C to +80°C, UL rated 94V-0 plastic case material
- 1 Form A (SPST-NO) contact arrangement, 1 Form A (SPST-NO) switch arrangement
- Maximum current rating of 0.1-40Arms, mounted to heatsink
- Zero voltage turn-on option
Product details
| Contact Configuration |
SPST-NO |
| Operating Voltage Max |
480VAC |
| Relay Terminals |
Screw |
| Operating Voltage Min |
50VAC |
| Control Voltage Max |
32VDC |
| Load Current |
40A |
| Relay Mounting |
Panel Mount |
| Switching Mode |
Zero Crossing |
| Control Voltage Min |
4VDC |
| Product Range |
SSR3 Series |
Other details
| Brand |
TE CONNECTIVITY - POTTER&BRUMFIELD |
| Part Number |
SSR3TR-480D40. |
| Quantity |
Each |
| Technical Data Sheet (436.10KB) EN |
View or download |
