Product Overview

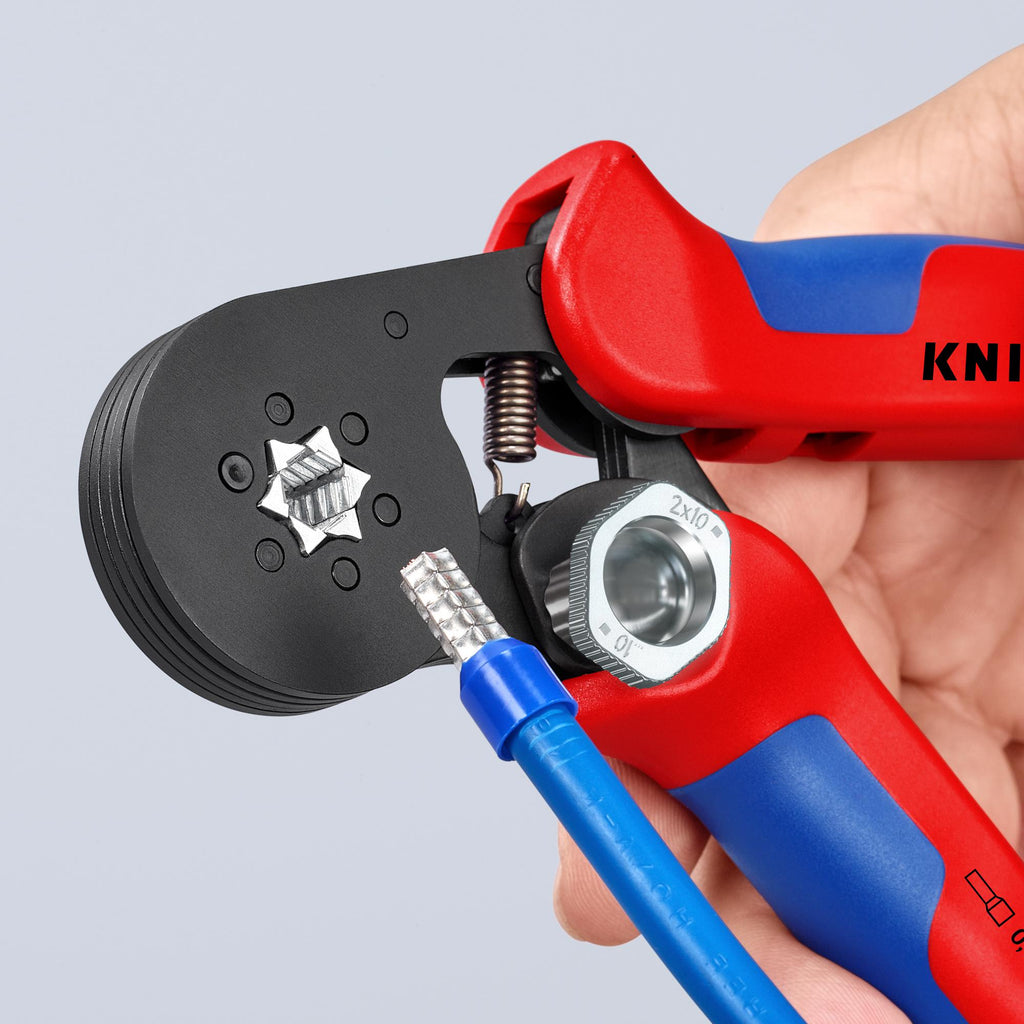

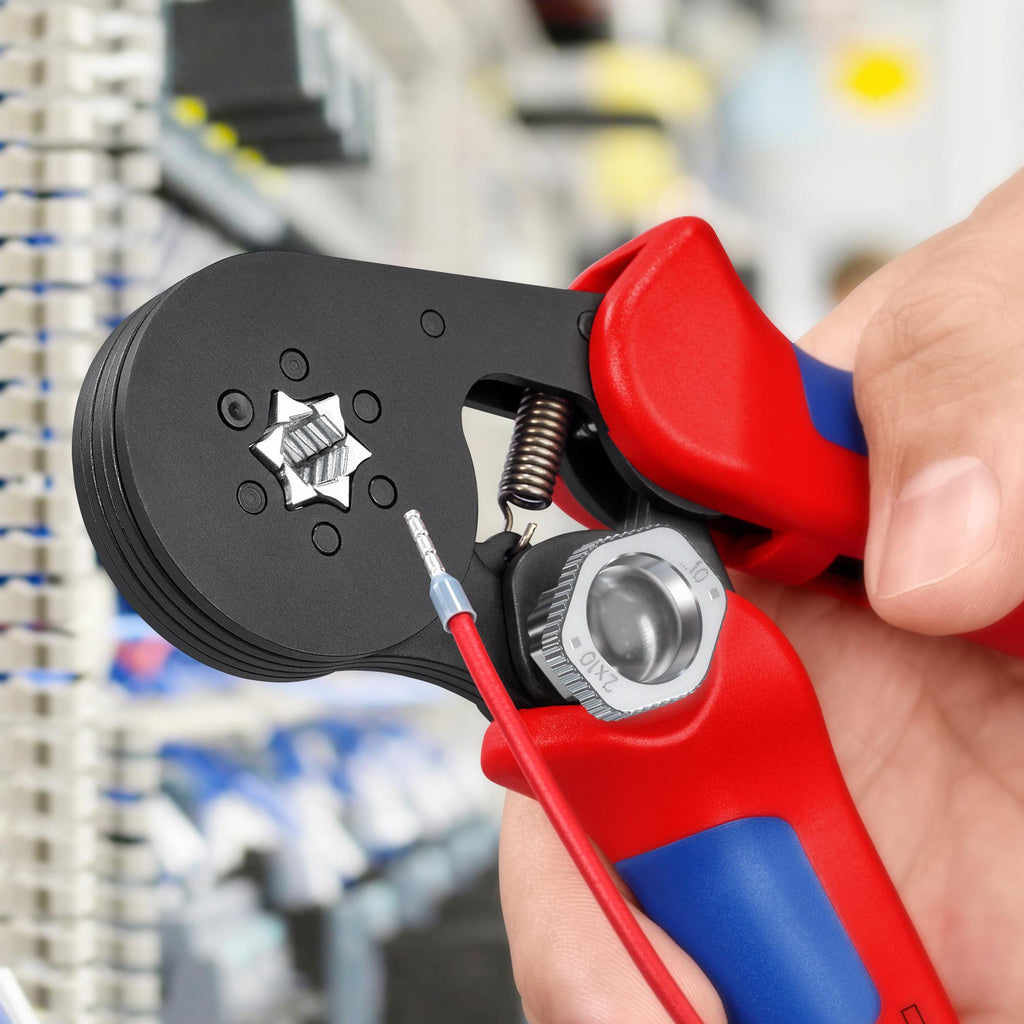

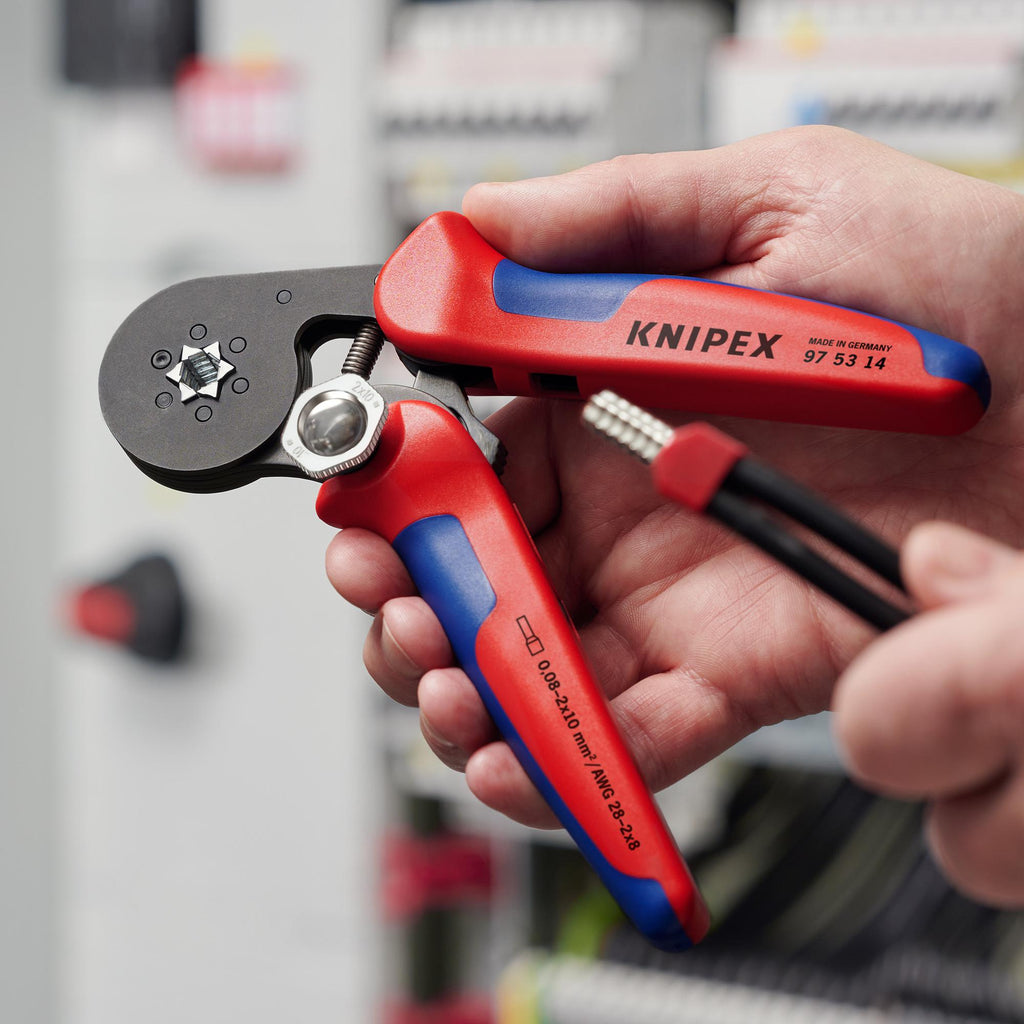

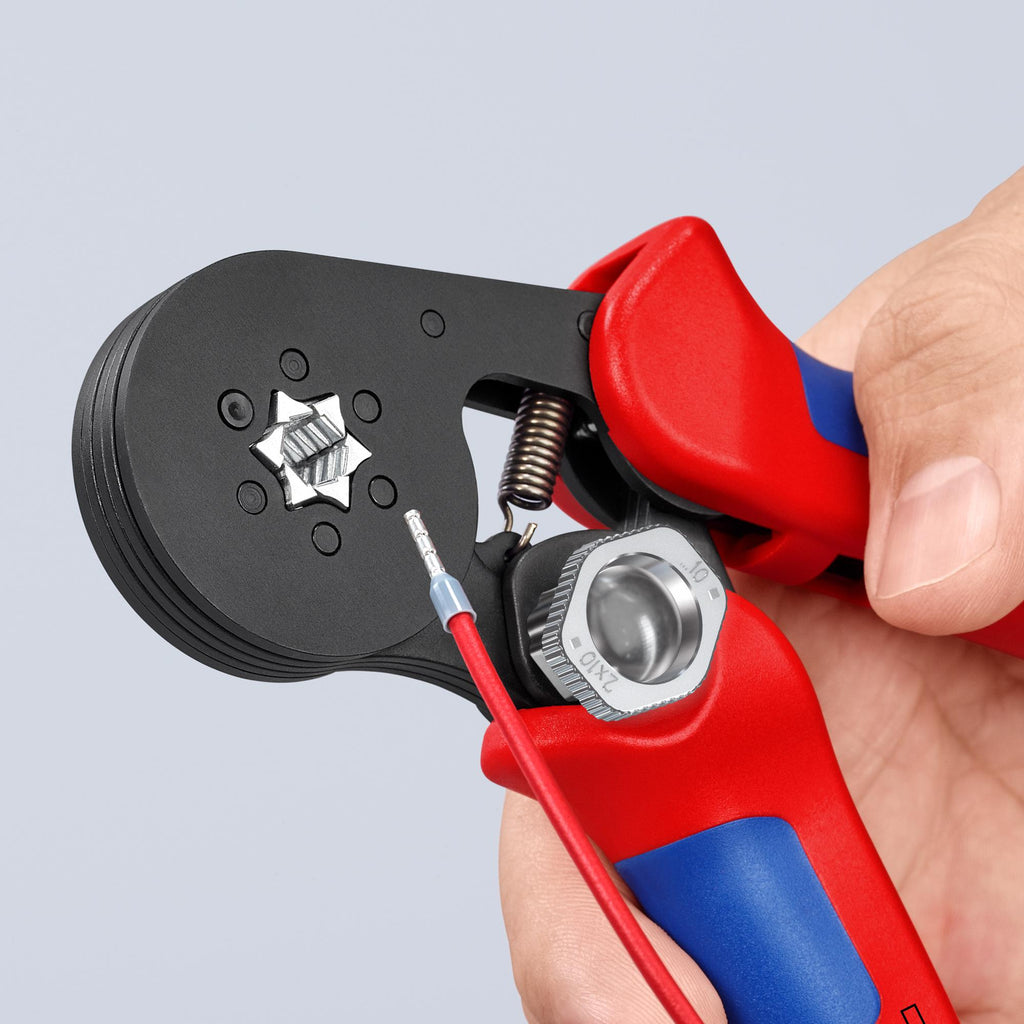

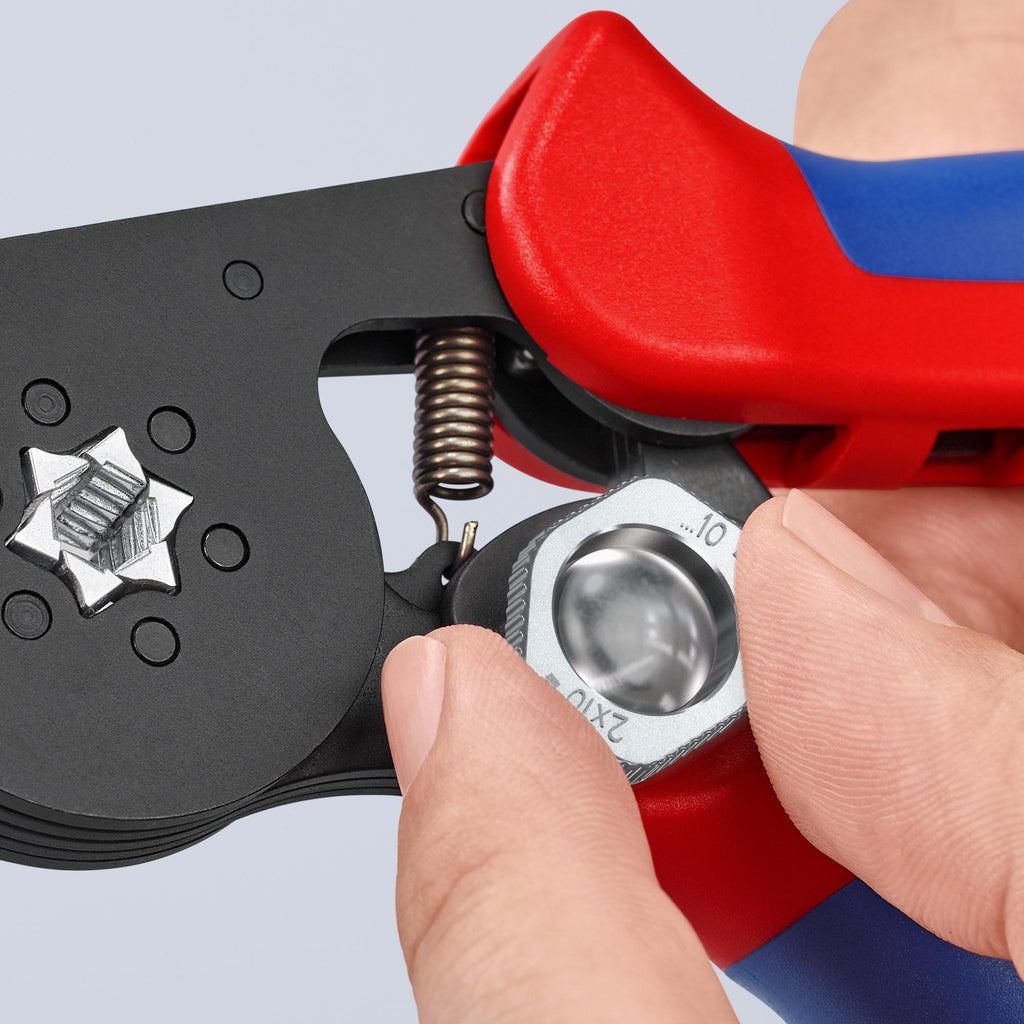

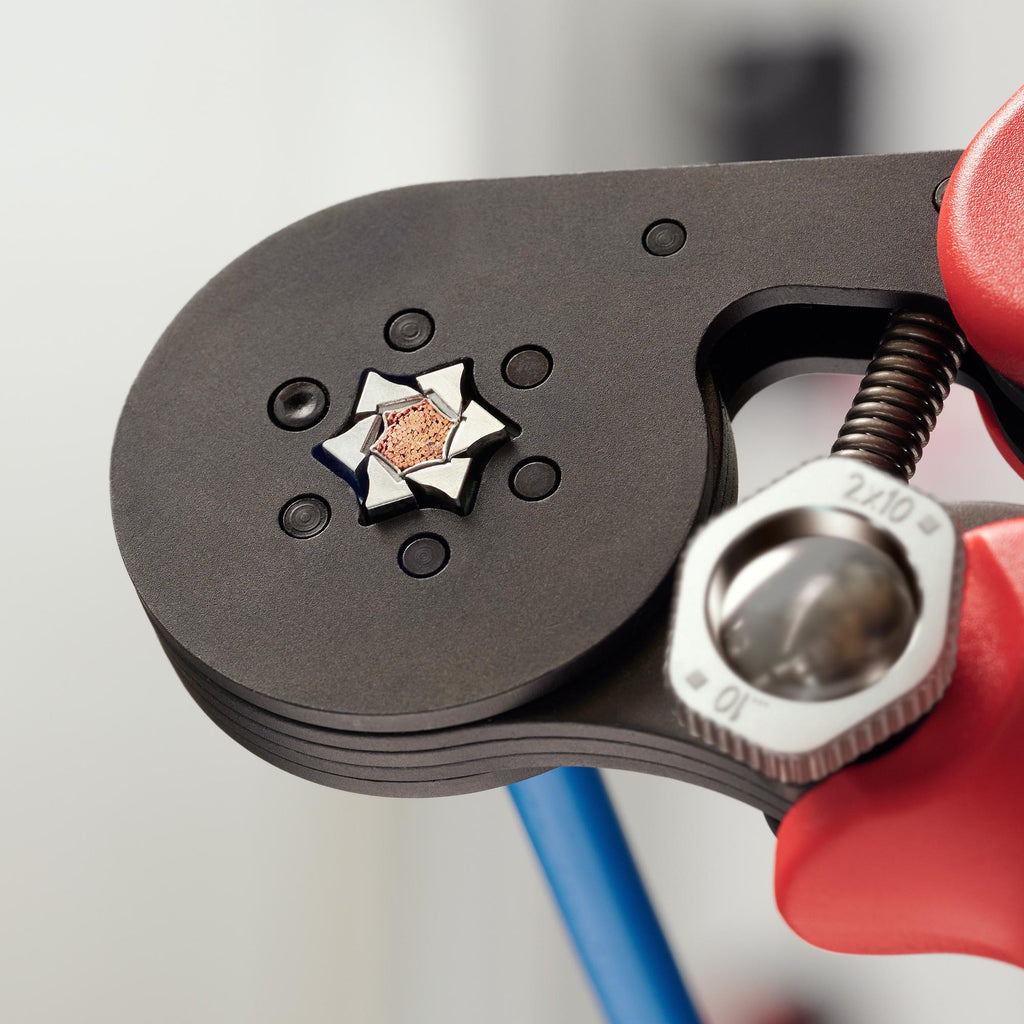

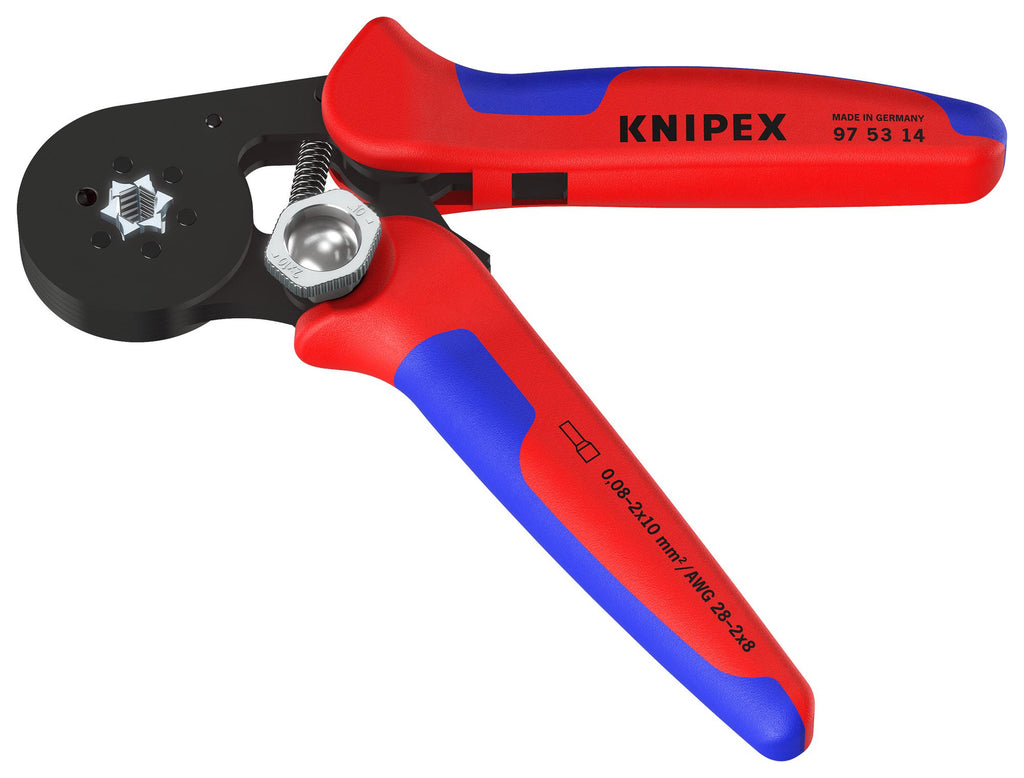

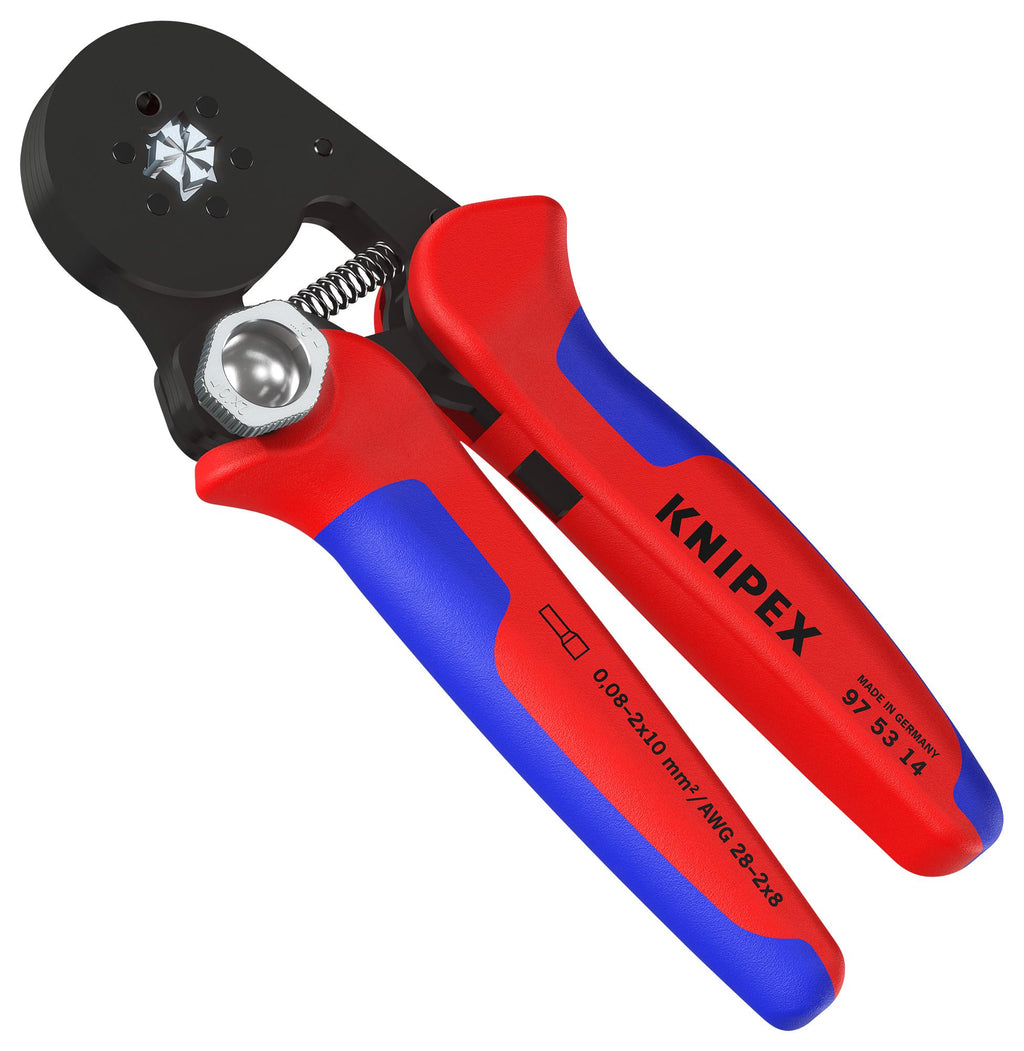

97 53 14 SB is a self-adjusting crimping plier for wire ferrules application. It features lateral access, narrow handle width and improved ergonomics. Reliable hexagonal crimping of wire ferrules from 0.08 to 16mm² (AWG 6) by simply turning and setting the adjusting wheel and all twin wire ferrules up to 2 x 10mm² (AWG 2 x 8). Suitable for crimping wire ferrules according to DIN 46228 parts 1 + 4. It has exagonal compression for confined connection dimensions and self-adjustment to the size of wire ferrules required. It has optimum transmission of force to toggle lever for fatigue-reduced operation.
- Repetitive, high crimping quality due to ratchet mechanism (unlockable)
- Tools have been set precisely (calibrated) in the factory
- Handy shape and low weight provide high operation comfort
- Special quality chrome vandium electric steel, oil hardened material
- Handles with multi-component grips
- Suitable for wire ferrules
- Dimension is 180mm x 74mm x 25mm
- Capacity in square millimetres range form 0.08 to 16mm², AWG range from 28 to 8AWG
- Number of crimping positions is 1
Product details
| Crimp Tool Type |
Ratchet |
| Product Range |
- |
| For Use With |
0.08 to 16mm² & 2 x 10mm² Twin Wire Ferrules |
| SVHC |
No SVHC (27-Jun-2018) |
Other details
| Brand |
KNIPEX |
| Part Number |
97 53 14 SB |
| Quantity |
Each |
| Technical Data Sheet (41.00B) EN |
View or download |
