Product Overview

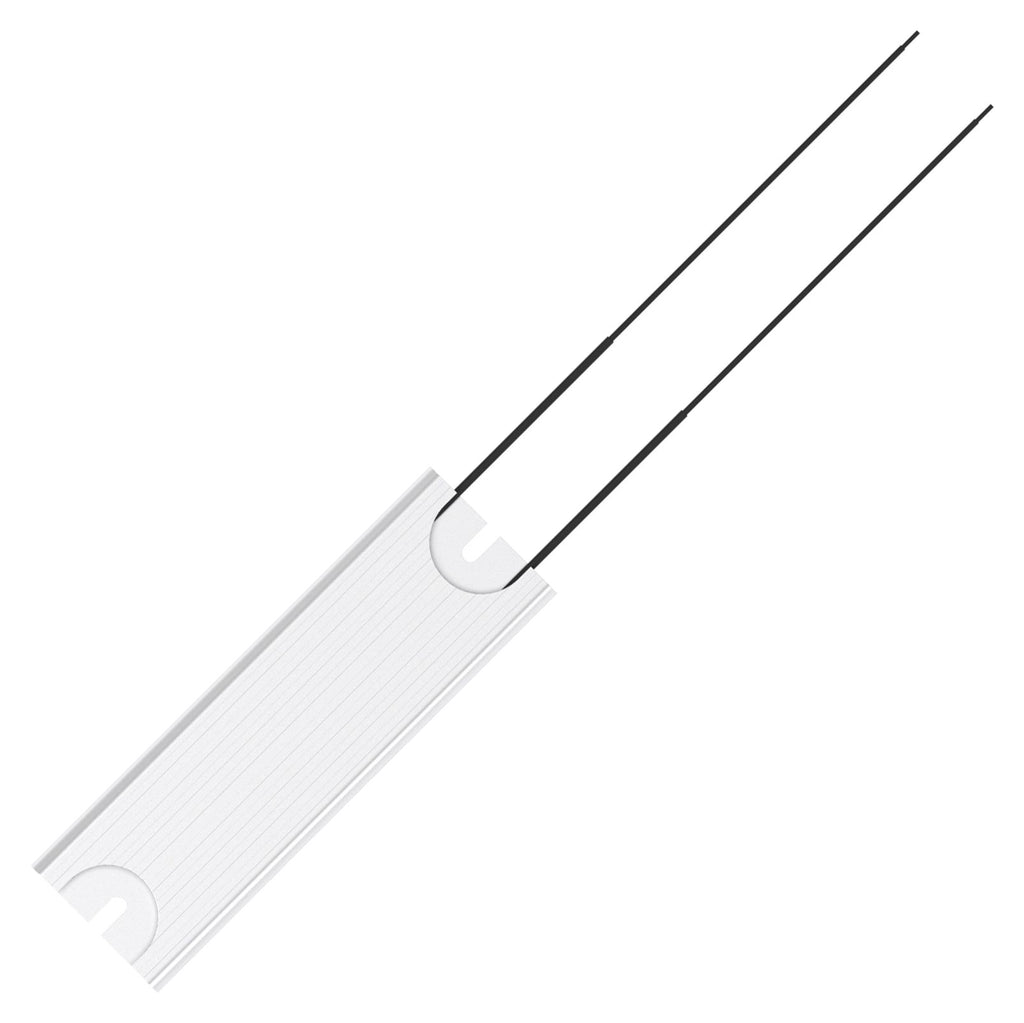

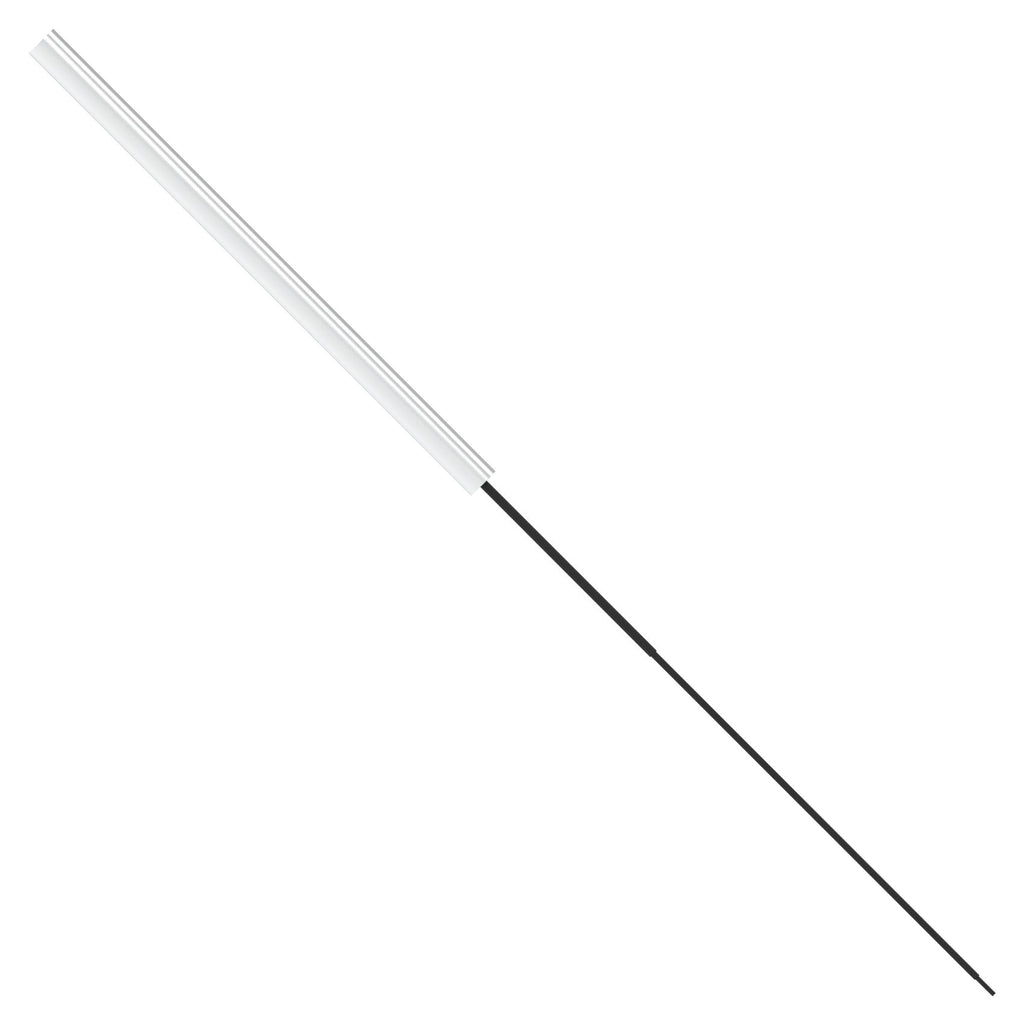

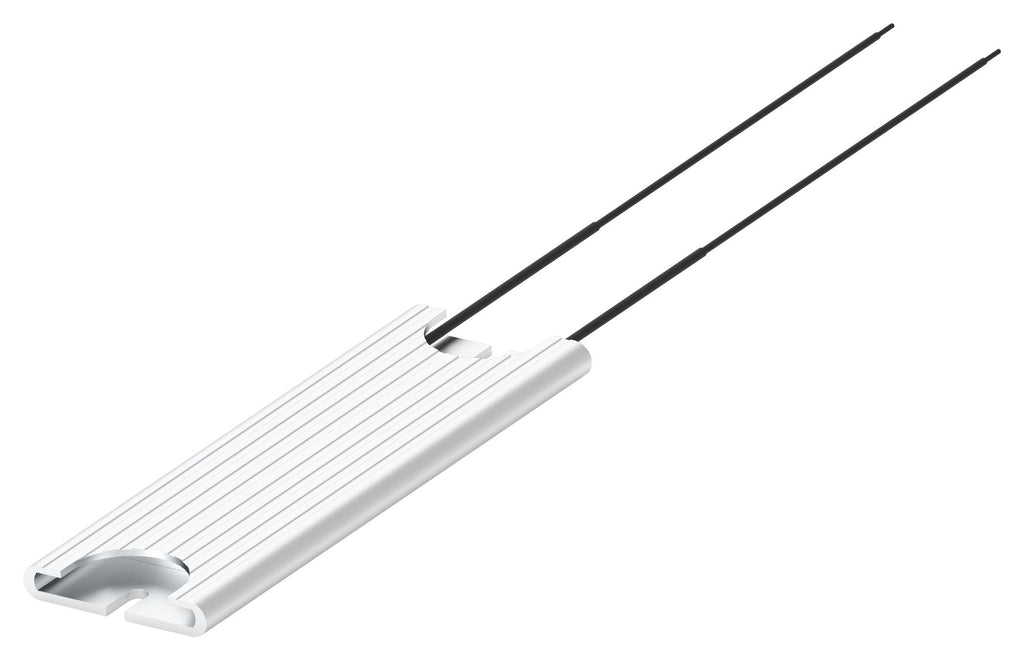

HCL series aluminium housed wire wound resistors are designed in an ultra thin package capable of dissipating high power where space is at a premium and heat sinking is available. Capable of absorbing high overloads in relation to its size. The resistors are ideal for use in servo drives and controllers and frequency inverters. They are used for motor braking, dummy loads and in conventional power resistor applications.
- Ultra slim package-7.25mm
- High power to size ratio
- High overload capability
- UL E164323 approved
- Anodized extruded aluminium profile body
- Standard insulated 18AWG, 600V, 200°C cable with 150mm length
Product details
| Resistance Tolerance |
± 5% |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
TE CONNECTIVITY - CGS |
| Part Number |
HCL130J220RCX |
| Quantity |
Each |
| Technical Data Sheet (170.29KB) EN |
View or download |
