Product Overview
RC0603FR-07300RP is a RC_P series lead free chip resistor made by thick film process. RC_P series is suitable for general purpose applications.
- Resistance value is 300ohm
- Resistance tolerance is ±1%
- Power rating is 100mW
- Resistor case size is 0603 [1608 Metric]
- Temperature coefficient is ± 150ppm/°C
- Voltage rating is 75V
- Reduces environmentally hazardous wastes
- High component and equipment reliability
- Saving of PCB space
- Operating temperature range from -55°C to 155°C
Product details
| Resistance |
300ohm |
| Power Rating |
100mW |
| Resistor Technology |
Thick Film |
| Product Range |
RC_P Series |
| Voltage Rating |
75V |
| Product Width |
0.8mm |
| Operating Temperature Max |
155°C |
| SVHC |
No SVHC (04-Feb-2026) |
| Resistance Tolerance |
± 1% |
| Resistor Case / Package |
0603 [1608 Metric] |
| Resistor Type |
General Purpose |
| Temperature Coefficient |
± 100ppm/°C |
| Product Length |
1.6mm |
| Operating Temperature Min |
-55°C |
| Qualification |
- |
Other details
| Brand |
YAGEO |
| Part Number |
RC0603FR-07300RP |
| Quantity |
Each |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.

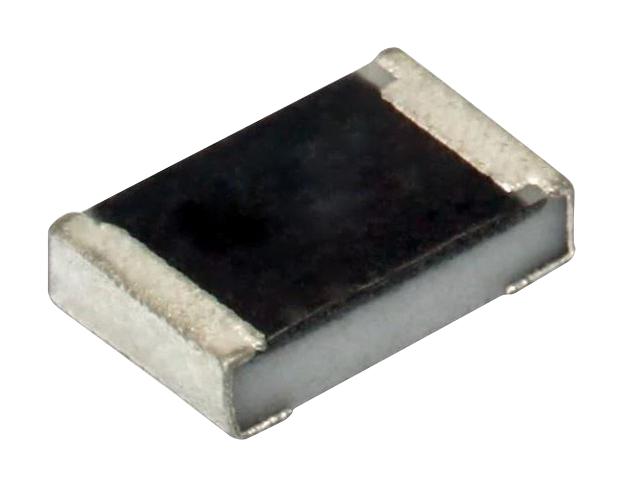

![YAGEO RC0603FR-07300RP SMD Chip Resistor, 300 ohm, ± 1%, 100 mW, 0603 [1608 Metric], Thick Film, General Purpose](http://www.tanotis.com/cdn/shop/files/1140836-40_dc9f11ee-4d46-4884-b1f5-8aeeedcef1fc_{width}x.jpg?v=1791704699)
