Product Overview
Extreme light punch through IGBT for 10-30KHz switching suitable for use in power inverters, UPS, motor drives, SMPS , PFC circuits, battery chargers, welding machines, lamp ballasts and high frequency power inverter applications.
- Square RBSOA
- Short circuit capability
- Anti-parallel sonic diode
- High current handling capability
- High power density
- Low gate drive requirement
Product details
| Continuous Collector Current |
250A |
| Power Dissipation |
880W |

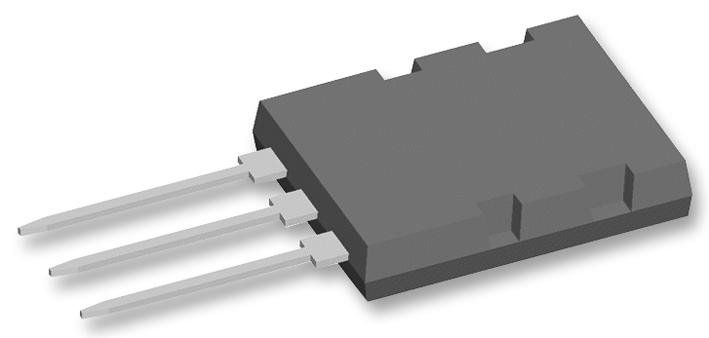

| Transistor Case Style |
TO-264 |
| Operating Temperature Max |
175°C |
| Product Range |
- |
| Collector Emitter Saturation Voltage |
1.72V |
| Collector Emitter Voltage Max |
650V |
| No. of Pins |
3Pins |
| Transistor Mounting |
Through Hole |
Other details
| Brand |
LITTELFUSE |
| Part Number |
IXXK110N65B4H1 |
| Quantity |
Each |
| Product Change Notice (402.63KB) EN |
View or download |
| Technical Data Sheet (390.54KB) EN |
View or download |
