Product Overview

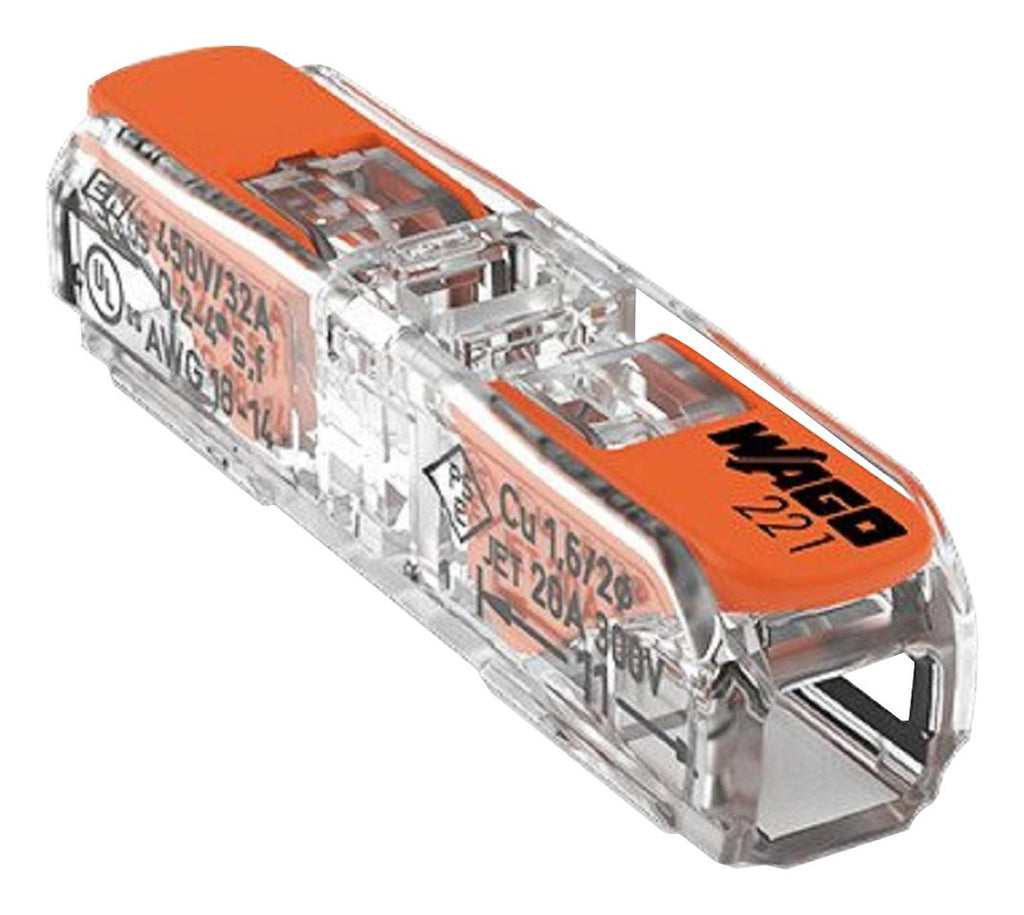

The 221-2411 from WAGO is a the brand new inline splicing connector with lever for easy electrical installation and transparent housing allows for visual inspection for correct wiring.
- Solid conductors: 0.2mm² to 4mm² (20 AWG to 14 AWG)
- Stranded conductors: 0.2mm² to 2.5mm² (18 AWG to 14 AWG)
- Fine stranded conductors: 0.2mm² to 4mm² (18 AWG to 14 AWG)
- Voltage rating: 450V AC
- Current rating: 32A
- Transparent housing with orange lever
- Dimensions (WxHxD): 8.1x8.9x35.5mm
Product details
| Pitch Spacing |
- |
| No. of Positions |
1Ways |
| Wire Size AWG Min |
20AWG |
| Conductor Area CSA |
4mm² |
| Rated Current |
32A |
| SVHC |
No SVHC (04-Feb-2026) |
| Product Range |
WAGO 221 Series |
| Wire Size (AWG) |
20AWG to 14AWG |
| Wire Size AWG Max |
14AWG |
| Wire Connection Method |
Push In Lock |
| Rated Voltage |
450V |
