Product Overview

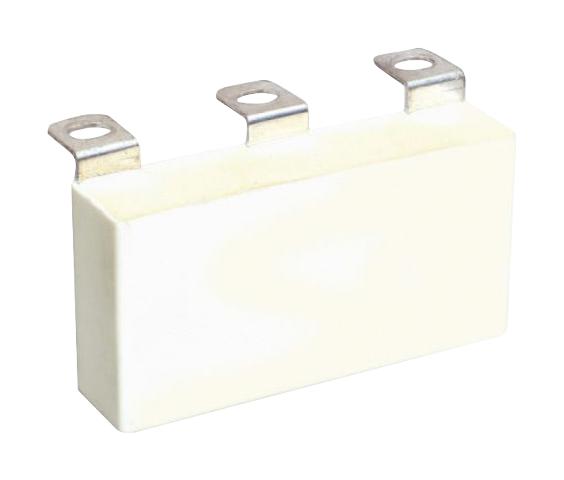

MULTICOMP PRO MP008370 Power Film Capacitor, Metallized PP, Radial Box - Tabs, 1 µF, ± 10%, Snubber, Panel Mount
Product details
| Dielectric Type |
Metallized PP |
| Capacitance |
1µF |
| Typical Applications |
Snubber |
| Voltage(AC) |
350V |
| Humidity Rating |
- |
| Lead Spacing |
26mm |
| Peak Current |
828A |
| ESR |
3000µohm |
| Product Length |
80mm |
| Product Height |
40mm |
| Output (kvar) |
- |
| Operating Temperature Min |
-40°C |
| Qualification |
- |
| Capacitor Case / Package |
Radial Box - Tabs |
| Capacitance Tolerance |
± 10% |
| Capacitor Mounting |
Panel Mount |
| Voltage(DC) |
1kV |
| Capacitor Terminals |
Solder Lug |
| dv/dt Rating |
828V/µs |
| RMS Current (Irms) |
20A |
| Product Diameter |
- |
| Product Width |
20mm |
| Ripple Current |
- |
| Product Range |
MP SI Series |
| Operating Temperature Max |
105°C |
| SVHC |
To Be Advised |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MP008370 |
| Quantity |
Each |
| Technical Data Sheet (489.02KB) EN |
View or download |
