Product Overview

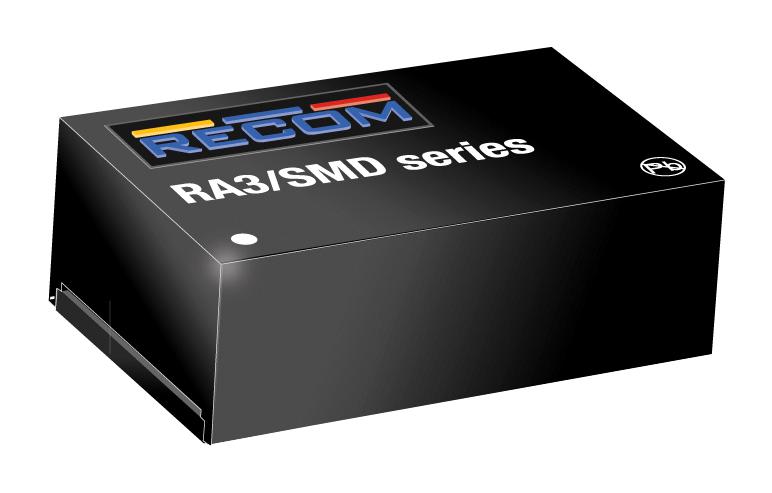

RA3 series 3W isolated dual output DC/DC converter which are especially designed to power transistor gate drivers.
- High 5.2KVDC/1min isolation
- Wide operating temperature range from -40?C to +85?C
- Ideal for IGBT/Si/SiC/GaN gate drive power
- IEC/EN/UL CSA 62368-1 certified
- Less than 10pF isolation capacitance
- Compact DIP16 SMD package
- 5VDC nom input voltage
- 15/-3VDC output voltage 1/2 and +100/-500mA output current
- 78% typ efficiency
Product details
| Power Supply Applications |
- |
| Input Ratio |
- |
| No. of Outputs |
2 Output |
| Output Current - Output 1 |
100mA |
| Output Current - Output 2 |
-500mA |
| Isolation Voltage |
5.2kV |
| DC / DC Converter Output Type |
Fixed |
| Height |
8.5mm |
| Input Voltage DC Min |
4.5VDC |
| Product Range |
RA3 Series |
| DC / DC Converter Type |
Surface Mount DIP |
| Output Power Max |
3W |
| Output Voltage - Output 1 |
15V |
| Output Voltage - Output 2 |
-3V |
| Output Regulation |
Unregulated |
| Input Voltage DC Nom |
5V |
| Width |
15mm |
| Depth |
23.4mm |
| Input Voltage DC Max |
5.5VDC |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
RECOM POWER |
| Part Number |
RA3-051503D/SMD |
| Quantity |
Each |
| Technical Data Sheet (1.54MB) EN |
View or download |
